(API 624 Additional High Temperature Version)
Key Specifications / Features

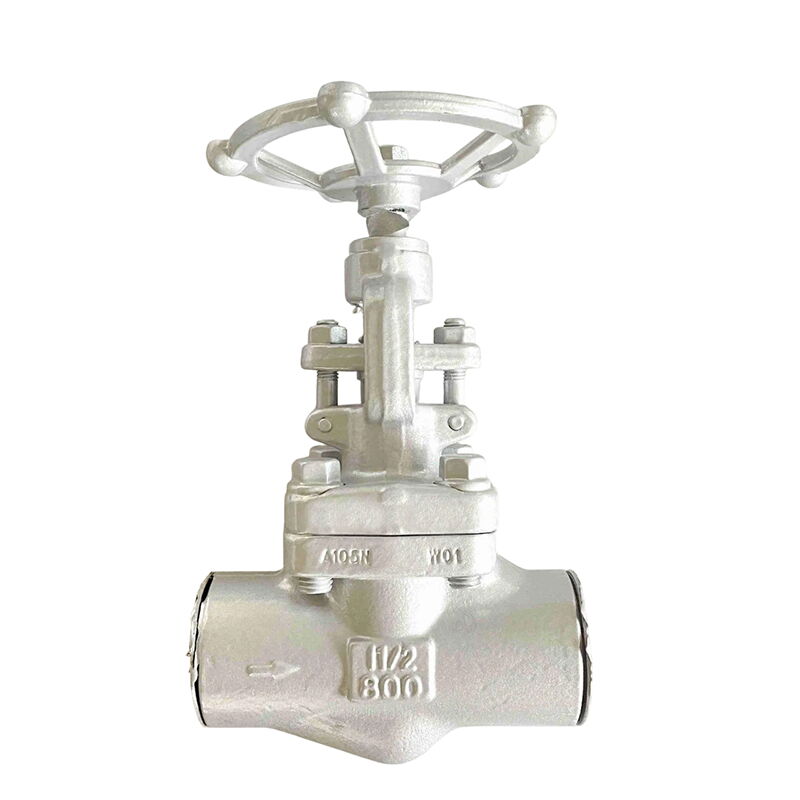

The China API 602 Globe Valve Supplier offers robust and reliable Carbon Steel ASTM A105N Globe Valves, designed for high-performance applications. These 1-1/2 inch, 800 LB valves feature a bolted bonnet for enhanced safety and a reduced port for efficient flow control. They are equipped with an OS&Y (Outside Screw and Yoke) mechanism for easy operation and maintenance, and they meet low emission standards to ensure environmental compliance. The valves come with SW (Socket Weld) ends for secure and leak-tight connections, making them ideal for critical industrial processes.
- Model no.: MV-20250609-FSGLV-02
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: ASTM A105N Globe Valve, 1-1/2 Inch Globe Valve, API 602 Globe Valve
Detail Information
Product Name: API 602 Globe Valve
Key Features: Bolted Bonnet, Reduced Port, OS&Y
Design Standard: API 602
Body Material: ASTM A105N
Size: 1-1/2 Inch, DN40
Pressure: Class 800 LB, PN130
Operation: Handwheel
End Connection: Socket Weld
Face to Face Standard: MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304/F304L, F316/F316L, F11, F22, F91, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
End Connection: Welded, Flanged, Threaded
Pressure Range: Class 150-2500 LB, PN16-PN420
Temperature Range: -29°C to 429°C
Medium: Water, Steam, Gas, etc.
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
