(API 624 Additional High Temperature Version)
Key Specifications / Features

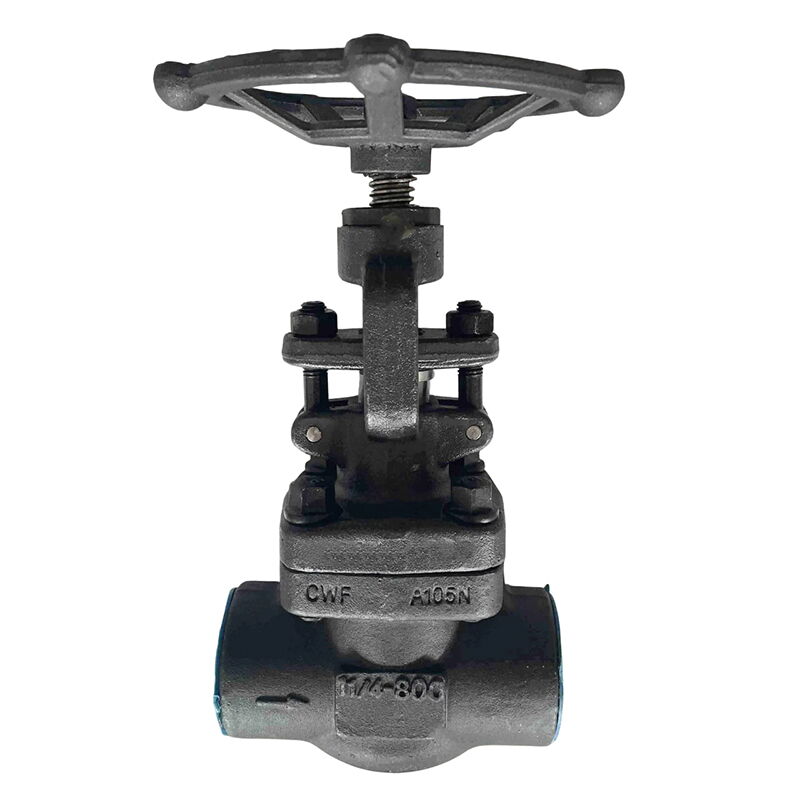

The China ASTM A105N Globe Valves Factory offers a range of high-quality low-emission globe valves designed to meet API 602 standards. These valves feature a forged carbon steel body and are available in a 1-1/4 inch (DN32) size with a Class 800 LB rating, ensuring they can handle high-pressure applications. They come with handwheel operation and NPT threaded ends for easy installation and control. The rising stem design allows for precise flow control and monitoring.
- Model no.: MV-20250607-FSGLV-06
- Hits: 2
- Categories: Forged Steel Globe Valve
- Tags: Class 800 LB Globe Valve, ASTM A105N Globe Valve, 1-1/4 Inch Globe Valve
Detail Information
Product Name: ASTM A105N Rising Stem Globe Valves
Design Standard: API 602
Body Material: ASTM A105N
Size: 1-1/4 Inch, DN32
Pressure: Class 800 LB, PN420
Operation: Handwheel
End Connection: NPT
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304, F316, F11, F22, F91, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
End Connection: SW, BW, RF, RTJ, NPT
Pressure Range: Class 150-2500 LB, PN16-PN420
Temperature Range: -29°C to 425°C
Medium: Water, Oil & Gas
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
