(API 624 Additional High Temperature Version)
Key Specifications / Features
The China Reduced Bore Globe Valve Factory specializes in producing high-quality Low Emission Globe Valves that adhere to API 602 standards. These valves are made from forged stainless steel ASTM A182 F304L, ensuring excellent corrosion resistance and durability. Available in a 1-inch size with a Class 800 LB pressure rating, they feature a bare shaft and are equipped with SW (Socket Weld) connections. These valves are ideal for applications requiring precision control and reliability in demanding industrial environments.
- Model no.: MV-20250609-FSGLV-01
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: Reduced Bore Globe Valve, ASTM A182 F304L Globe Valve, API 602 Globe Valve
Detail Information

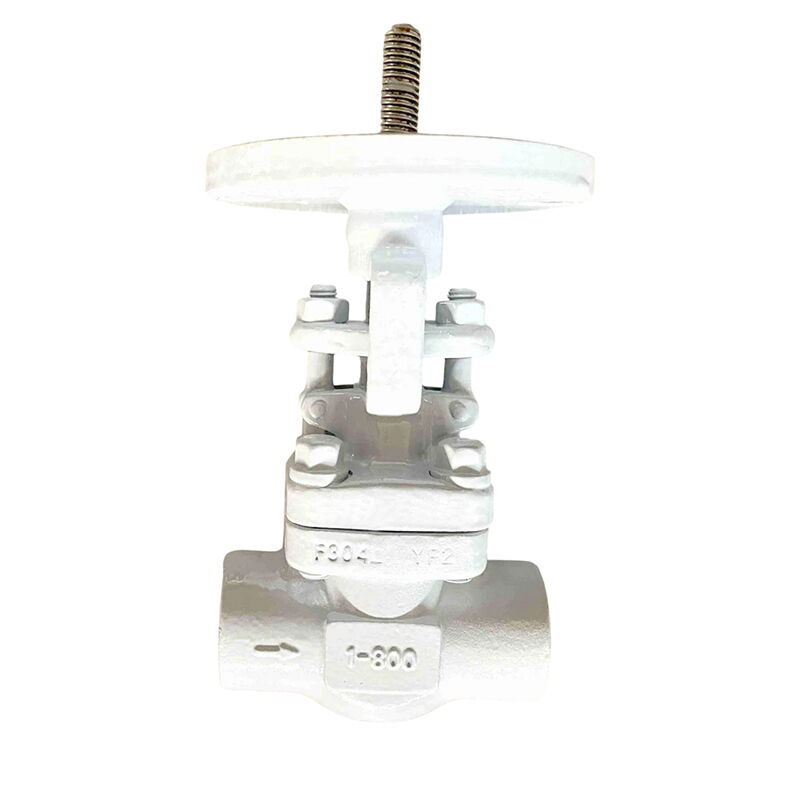

Product Name: Reduced Bore Globe Valve
Design Standard: API 602
Body Material: ASTM A182 F304L
Size: 1 Inch, DN25
Pressure: Class 800 LB, PN130
Operation: Bare Shaft
End Connection: Socket Weld
Face to Face Standard: MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304/F304L, F316/F316L, F11, F22, F91, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch
End Connection: SW, BW, Flanged, NPT
Pressure Range: Class 150-2500 LB
Temperature Range: -29°C to 300°C
Medium: Water, Steam, Gas, etc.
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
Similar Products
ASTM A182 F316L Globe Valve, API 602, BS 1873, 1 Inch, CL800

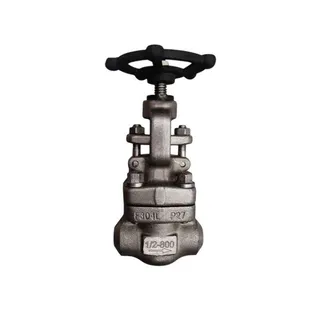

ASTM A182 F304L Globe Valve, API 602, 1/2 Inch, 800 LB, OS&Y

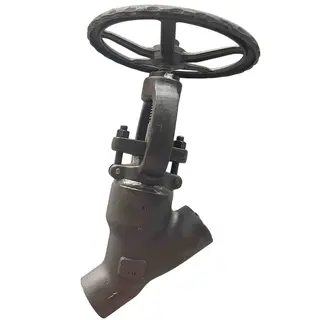

ASTM A182 F11 Y Globe Valve, 1-1/2 Inch, 800 LB, Socket Weld
