(API 624 Additional High Temperature Version)
Key Specifications / Features

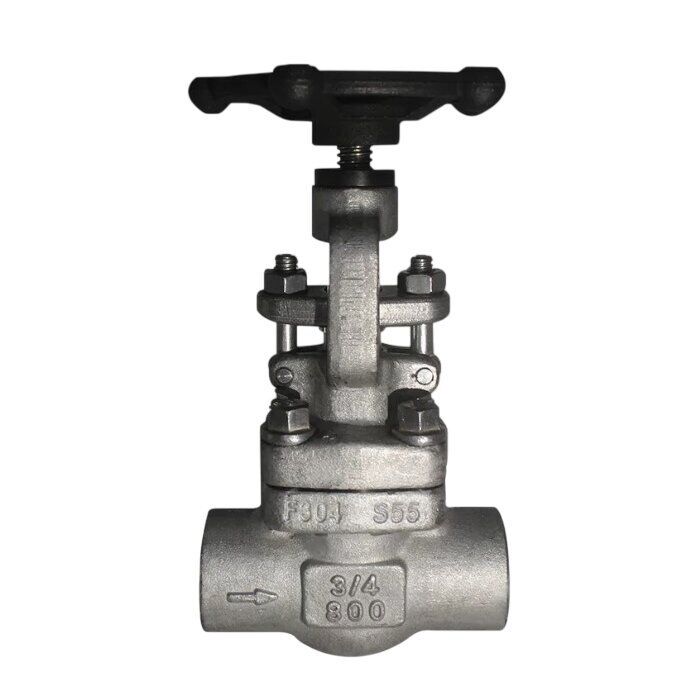

The ASTM A182 F304 Globe Valve is a forged stainless steel valve designed for high-performance fluid control. With a 3/4 inch size, Class 800 LB pressure rating, and welded ends, it meets industry standards like API 602 and BS 5352. Featuring a Low-E (low emissions) design, it ensures minimal leakage, making it ideal for environmentally sensitive applications. The valve's Outside Screw & Yoke (OS&Y) configuration provides reliable operation and longevity, offering secure sealing in demanding service environments.
- Model no.: MV-20250403-FSGLV-02
- Hits: 1
- Categories: Forged Steel Globe Valve
- Tags: API 602 Globe Valve, ASTM A182 F304 Globe Valve, BS 5352 Globe Valve
Detail Information
Product Name: ASTM A182 F304 Globe Valve
Structure: Through Way Globe Valve
Design Standard: API 602, BS 5352
Body Material: ASTM A182 F304
Size: 3/4 Inch, DN20
Pressure: Class 800 LB, PN130
End: Welded
Operation: Handwheel
Features: Outside Screw & Yoke (OS&Y), Bolted Bonnet
Product Range
Size Range: NPS 1/2-6 Inch, DN15-DN150
Pressure Range: Class 150-4500 LB
Body Material: ASTM A105, A105N, A350 LF2, A182 F11, F22, F91, F304/304L, F316/316L, F321, F347, F51, Monel, Inconel etc.
Product Structure: Bolted Bonnet (BB), Welded Bonnet (WB), Pressure Seal Bonnet (PSB)
Applicable Standards
Design: API 602, BS 5352, ISO 15761, ASME B16.34
Inspection & Testing: API 598
Marking: MSS SP-25
P/T Rating: ASME B16.34
Face to Face: ASME B16.10
End to End: Manufacturer Std or ASME B16.10
Socket Welding: ASME B16.11
Screwed Ends: ASME B1.20.1
Flanged: ASME B16.5
Butt Welding: ASME B16.25
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
