Key Specifications / Features
We are a leading Low-Temperature Globe Valves Supplier, offering a range of high-quality forged steel globe valves. These valves are designed for sizes from 1/2 to 2 inches and pressure ratings from Class 150 to 2500 LB. Manufactured to meet API 602, ASME B16.34, ASTM A105N, and other standards, they are available in various materials, including A182 F304, F304L, F316, and F316L. These globe valves are ideal for low-temperature applications, providing precise control and reliable performance in demanding industrial environments.
- Model no.: MV-20250528-CGLV-01
- Hits: 2
- Categories: Cryogenic Globe Valve
- Tags: Low Temperature Globe Valve, API 602 Globe Valve, ASTM A182 F304 Globe Valve
Detail Information

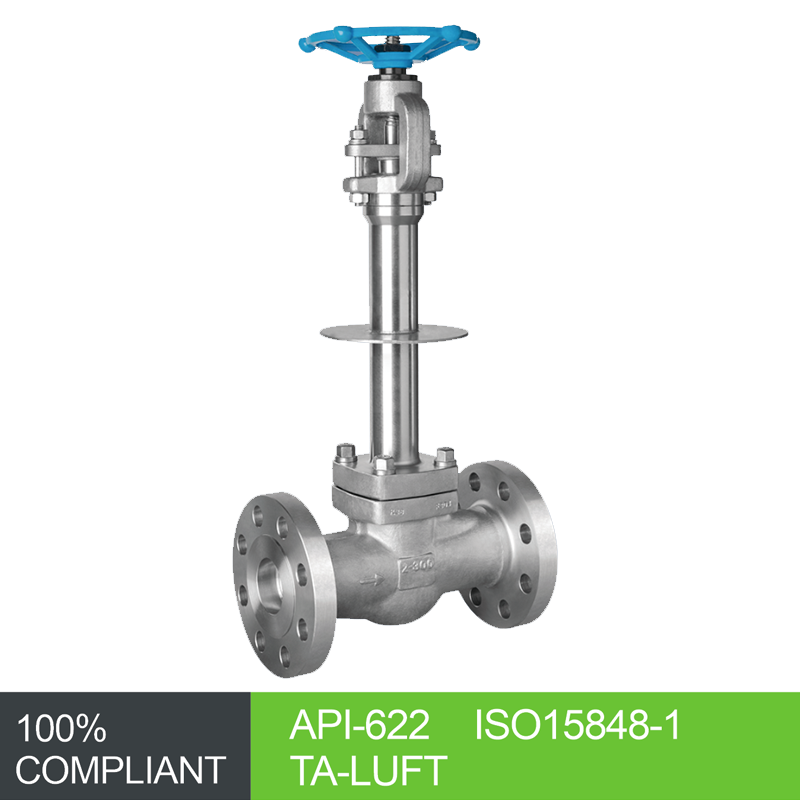

Product Name: Forged Steel Low-Temperature Globe Valves
Nominal Bore Size: 1/2-2 Inch, DN15-DN50
Nominal Pressure: Class 150-2500 LB, PN20-PN420
Design and Manufacturing Standard: API 602, ASME B16.34
Inspection and Testing Standards: API 598
Structural Length Standard: ASME B16.10
Body Materials: ASTM A105N, A350 LF2, LF3, A182 F11, F5, F22, F304, F304L, F316, F316L, F321, F304H, F316H, F321H, F51, F53, F55, F91, F92, F347, 310S, Incoloy 800H, Incoloy 600, Incoloy 625, and other special alloys
We can manufacture the following Ultra-Low Temperature Globe Valves:
- Globe Valves for Liquefied Natural Gas (LNG)
- Low Temperature Globe Valves for Air Separation and Liquefaction
- Low Temperature Globe Valves for Liquid Oxygen (-183°C)
- Low Temperature Globe Valves for Liquid Nitrogen (-196°C)
- Low Temperature Globe Valves for Liquid Argon (-186°C)
- Low Temperature Globe Valves for Ethylene (-104°C)
- Low Temperature Globe Valves for Ammonia (-33°C)
- Low Temperature Globe Valves for Liquid Carbon Dioxide (-78°C)
- Low Temperature Globe Valves for Food and Cold Chain Industries
Globe Valve, Class 1500 LB, -196°C, ISO 15848-1 Type Test TUV SÜD Certification
