(API 624 Additional High Temperature Version)
Key Specifications / Features

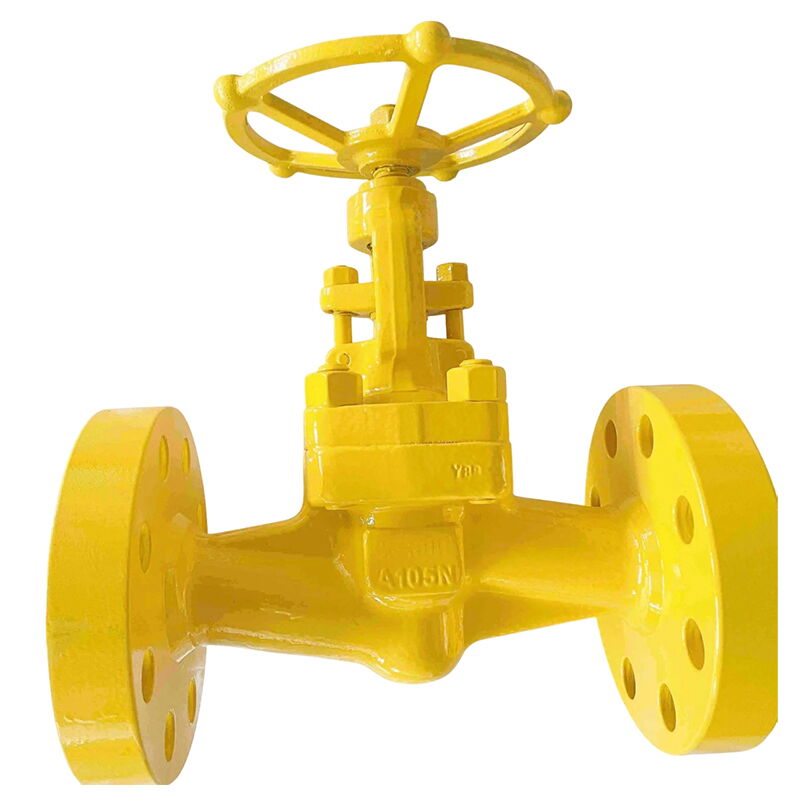

The Bolted Bonnet Globe Valve is a high-quality, handwheel-operated valve designed for precise flow control and low leakage. Manufactured to meet API 602 and ASTM A105N standards, this valve features a 2-inch (DN50) diameter and a robust pressure rating of 300 LB (PN50). Its RF flanged ends ensure secure and reliable connections. This globe valve is ideal for applications requiring stringent control and minimal leakage, making it a reliable choice for various industrial processes.
- Model no.: MV-20250609-FSGLV-03
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: 2 Inch Globe Valve, ASTM A105N Globe Valve, Bolted Bonnet Globe Valve
Detail Information
Product Name: API 602 Bolted Bonnet Globe Valve
Design Standard: API 602
Body Material: ASTM A105N
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN50
Operation: Handwheel
End Connection: RF Flanged
Face to Face Standard: MFG, ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon Steel, Stainless Steel, Alloy Steel, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch
End Connection: Welded, Flanged, Threaded
Pressure Range: Class 150-2500 LB
Temperature Range: -29°C to 429°C
Medium: Oil, Gas
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
