(API 624 Additional High Temperature Version)
Key Specifications / Features

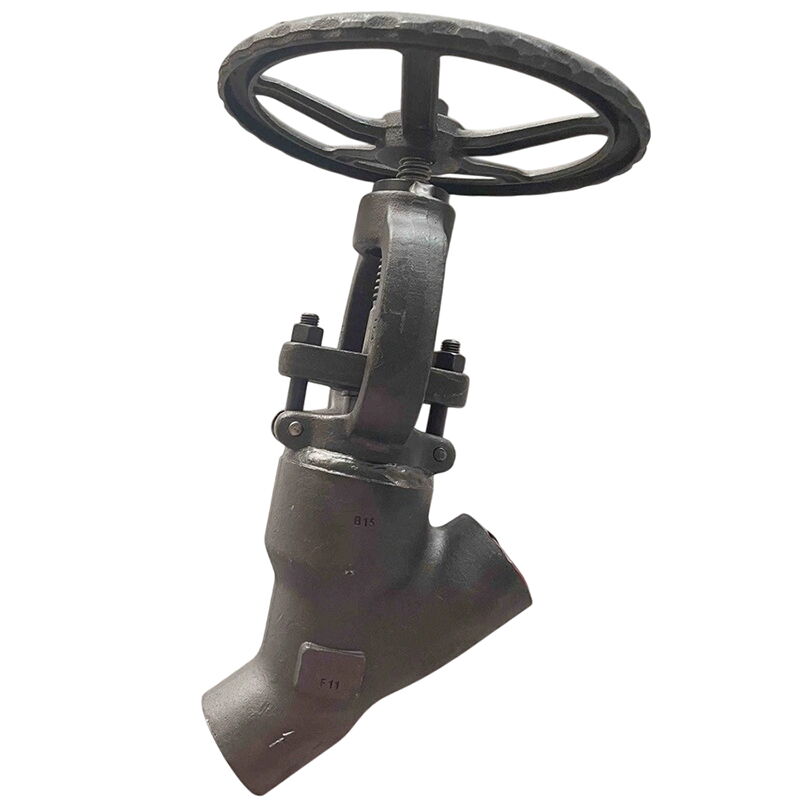

The ASTM A182 F11 Y-Type Globe Valve from a top-tier factory is designed in accordance with API 602 standards. This compact globe valve features a forged alloy steel body, ensuring robustness and durability. With a 1-1/2 inch diameter and a Class 800 LB pressure rating, it offers low leakage performance, making it highly reliable. The socket weld ends provide a secure and efficient connection, ideal for high-pressure applications. This valve is perfect for industries requiring precision control and high performance.
- Model no.: MV-20250609-FSGLV-05
- Hits: 1
- Categories: Forged Steel Globe Valve
- Tags: 1-1/2 Inch Globe Valve, Y Type Globe Valve, ASTM A182 F11 Globe Valve
Detail Information
Product Name: ASTM A182 F11 Y Globe Valve
Type: Y Type Globe Valve
Design Standard: API 602
Body Material: ASTM A182 F11
Size: 1-1/2 Inch, DN40
Pressure: Class 800 LB, PN100
Operation: Handwheel
End Connection: Socket Weld
Face to Face Standard: MFG, ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon Steel, Stainless Steel, Alloy Steel, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch (DN15-DN50)
End Connection: Welded, Flanged, Threaded
Pressure Range: Class 150-2500 LB (PN16-PN420)
Temperature Range: -29°C to 425°C
Medium: Oil, Gas
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
