(API 624 Additional High Temperature Version)
Key Specifications / Features

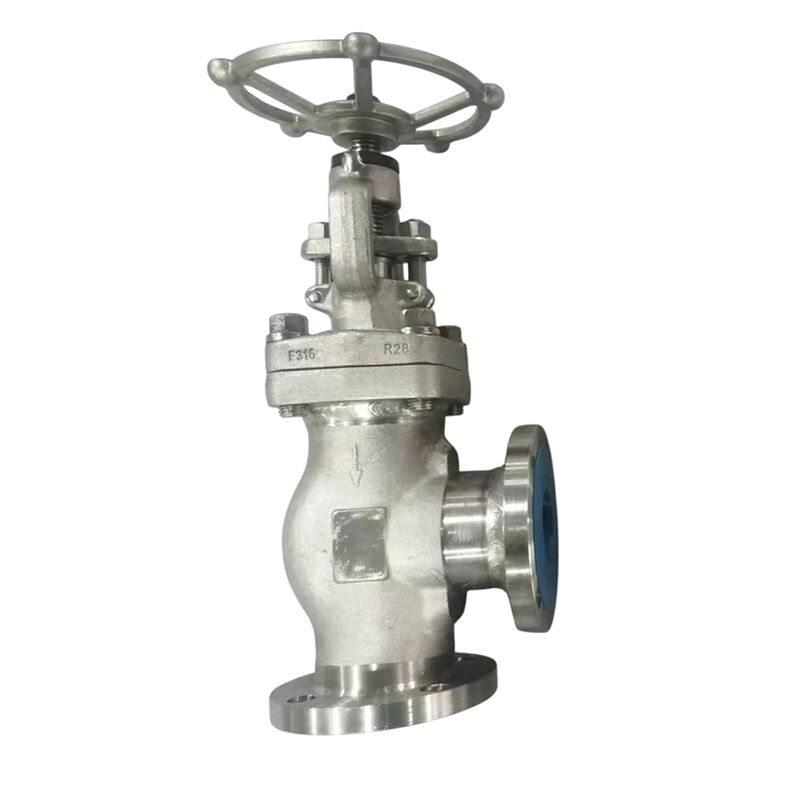

The China Angle Type Globe Valve Supplier offers a high-performance API 602 compact globe valve, designed for zero leakage. Made from ASTM A182 F316 stainless steel, this 2-inch valve features a DN50 size, Class 600 LB pressure rating, and PN100 designation, ensuring durability and reliability. It is equipped with RF flanged ends for secure and efficient connections, making it suitable for a variety of industrial applications.
- Model no.: MV-20250610-FSGLV-03
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: ASTM A182 F316 Globe Valve, Angle Type Globe Valve, 2 Inch Globe Valve
Detail Information
Product Name: Angle Type Globe Valve
Type: Angle Globe Valve
Design Standard: API 602
Body Material: ASTM A182 F316
Size: 2 Inch, DN50
Pressure: Class 600 LB, PN100
Operation: Handwheel
End Connection: RF Flanged, ASME B16.5
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon, Stainless, Alloy Steel, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
End Connection: SW, BW, Flanged, NPT
Pressure Range: Class 150-2500 LB, PN16-PN420
Temperature Range: -29°C to 300°C
Medium: Oil & Gas
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
