(API 624 Additional High Temperature Version)
Key Specifications / Features

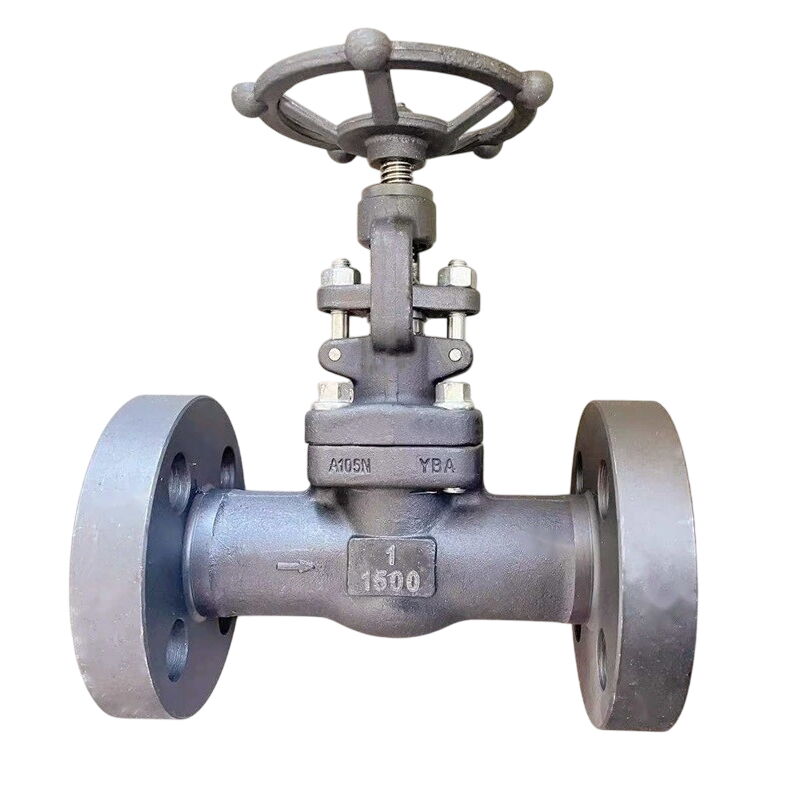

The Carbon Steel ASTM A105N Globe Valve Factory produces high-quality forged globe valves designed in accordance with API 602 standards. These 1-inch valves feature a DN25 size, Class 1500 LB pressure rating, and PN250 designation, ensuring robust performance and reliability. The valves are low emission, making them environmentally friendly, and come with RF flanged ends for secure connections.
- Model no.: MV-20250610-FSGLV-02
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: Class 1500 LB Globe Valve, Carbon Steel Globe Valve, ASTM A105N Globe Valve
Detail Information
Product Name: Carbon Steel ASTM A105N Globe Valve
Design Standard: API 602
Body Material: Forged Carbon Steel ASTM A105N
Size: 1 Inch, DN25
Pressure: Class 1500 LB, PN250
Operation: Handwheel
End Connection: RF Flanged, ASME B16.5
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon, Stainless, Alloy Steel, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch
End Connection: SW, BW, Flanged, NPT
Pressure Range: Class 150-2500 LB
Temperature Range: -29°C to 429°C
Medium: Oil & Gas
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
