(API 624 Additional High Temperature Version)
Key Specifications / Features

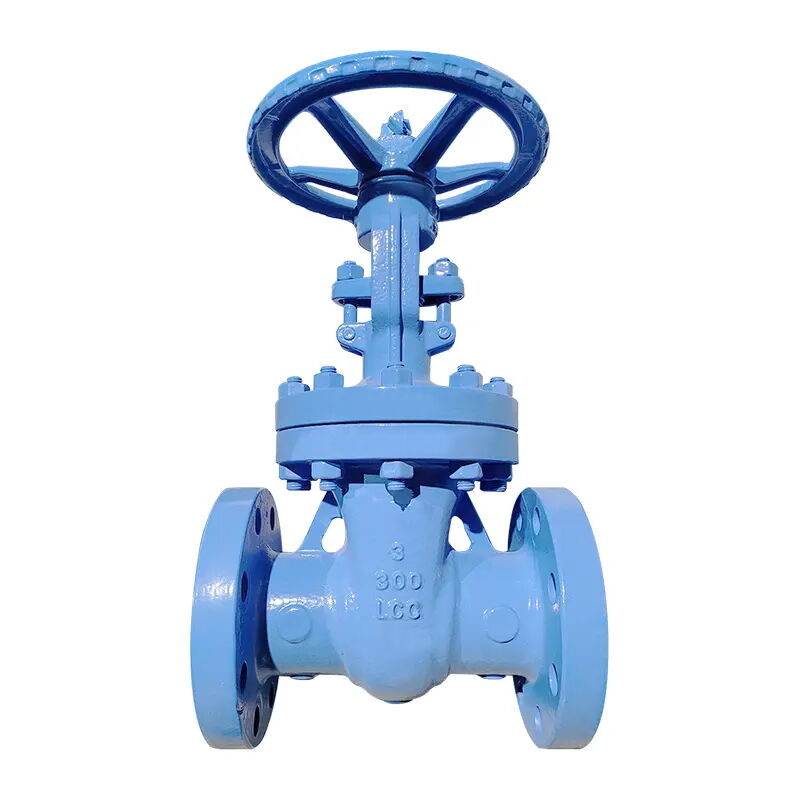

The ASTM A352 LCC Gate Valve features a flexible wedge design, compliant with API 600, API 603, and ASME B16.34 standards. With a 3-inch size and Class 300 LB rating, it offers low leakage performance, ideal for reliable sealing in demanding applications. The valve is equipped with an outside screw and yoke (OS&Y), rising stem, and bolted bonnet for secure operation and easy maintenance. This gate valve is suited for systems requiring durable, efficient flow control with minimal leakage.
- Model no.: MV-20250408-CSGTV-01
- Hits: 0
- Categories: Cast Steel Gate Valve
- Tags: API 600 Gate Valve, ASTM A352 LCC Gate Valve, 3 Inch Gate Valve
Detail Information
Product Name: ASTM A352 LCC Gate Valve, Flexible Wedge
Feature: Outside Screw & Yoke, Rising Stem, Bolted Bonnet
Design Standard: API 600, API 603, ASME B16.34
Body Material: ASTM A352 LCC
Size: 3 Inch, DN80
Pressure: Class 300 LB, PN50
End: RF Flanged
Operation: Handwheel
Standard
Flange Standard: ASME B16.5
Face to Face Standard: ASME B16.10
Testing Standard: API 6D, API 598
Fire Safe Standard: API 6FA, API 607
Working Temperature: -20°C to 180°C
Product Range
Material: ASTM A216 WCB, A352 LCC, A351 CF8, CF8M
Size: 1/2-28 Inch, DN15–DN700
Working Pressure: Class 150-600 LB, PN20-PN100
Industries: Petroleum, Chemical, Natural Gas, Biochemical, Pharmaceutical, Environmental Protection, New Energy
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
