(API 624 Additional High Temperature Version)
Key Specifications / Features

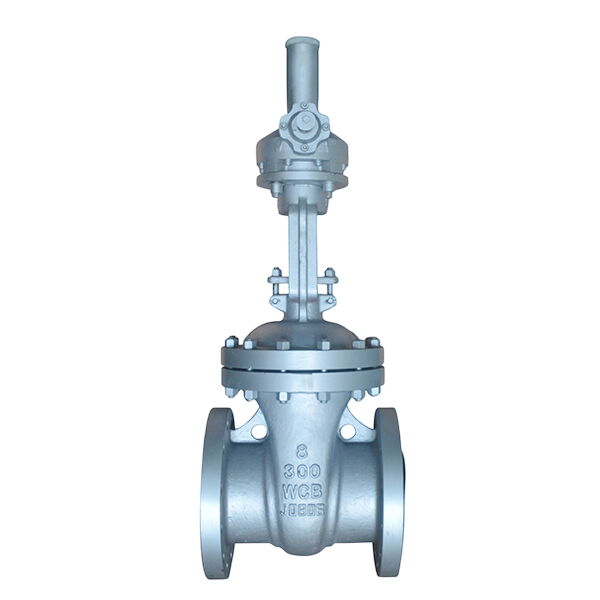

The Bolted Bonnet Gate Valve is engineered to meet API 600 standards, ensuring high-quality performance and reliability. The valve features a cast carbon steel body made from ASTM A216 WCB material, providing robust durability and strength. With a nominal diameter of DN200 (8 inches) and a pressure rating of PN50 (Class 300 LB), it is designed to handle high-pressure applications. The raised face (RF) flanged ends facilitate secure and leak-free connections to piping systems.
- Model No.: MV-20250617-CSGTV-02
- Hits: 2
- Categories: Cast Steel Gate Valve
- Tags: ASTM A216 WCB Gate Valve, 8 Inch Gate Valve, Bolted Bonnet Gate Valve
Detail Information
Product Name: Bolted Bonnet Gate Valve
Design Standard: API 600
Body Material: ASTM A216 WCB
Size: 8 Inch, DN200
Pressure: Class 300 LB, PN50
End Connection: RF Flanged
Operation: Bevel Gear
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Materials: ASTM A216 WCB, WCC, A351 CF8, CF8M, CF3, CF3M, A352 LCB, LCC
Size: 1/2-28 Inch, DN15-DN700
Working Pressure: Class 150-2500 LB, PN20-PN420
Design Standard: API 600, API 603, ASME B16.34
Flange Standard: ASME B16.5
Face to Face Standard: ASME B16.10
Testing Standard: API 6D, API 598
Working Temperature: -20°C to 180°C
Medium: Water, Oil, Gas
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
