(API 624 Additional High Temperature Version)
Key Specifications / Features

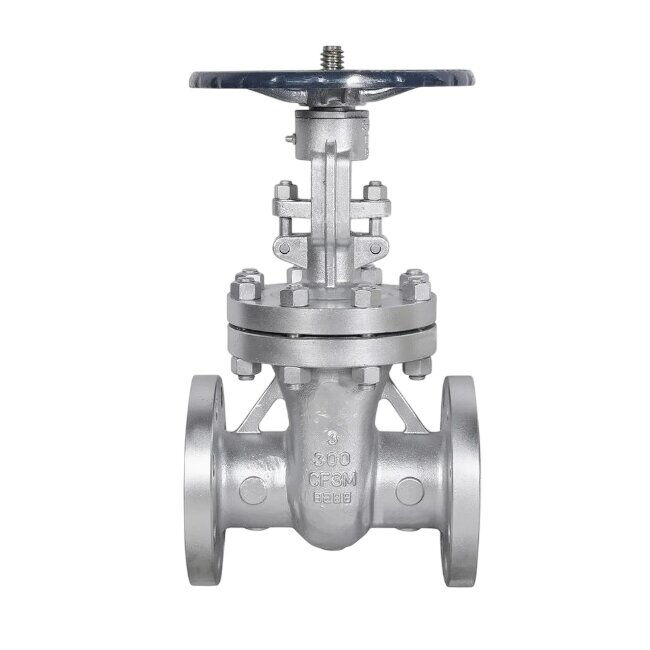

The ASTM A351 CF3M Gate Valve is a high-performance valve designed to meet API 600 standards. It features a cast stainless steel body, offering excellent corrosion resistance and durability. With a 3-inch size (DN80), Class 300 LB, and PN50 rating, this valve is suitable for high-pressure applications. It has a rising stem design for smooth operation and full-port flow, ensuring minimal restriction and low leakage. The RF (Raised Face) ends provide secure connections.
- Model no.: MV-20250410-CSGTV-01
- Hits: 2
- Categories: Cast Steel Gate Valve
- Tags: API 600 Gate Valve, ASTM A351 CF3M Gate Valve, Full Port Gate Valve
Detail Information
Product Name: ASTM A351 CF3M Gate Valve
Type: Wedge Gate Valve
Design Standard: API 600
Body Material: ASTM A351 CF3M
Size: 3 Inch, DN80
Pressure: Class 300 LB, PN50
End: RF Flanged
Operation: Handwheel
Features: Rising Stem, Full Port
Standard
Design Standard: API 600, API 6D
Flange Standard: ASME B16.5
Face to Face Standard: ASME B16.10
Testing Standard: API 598
Working Temperature: -20°C to 180°C
Product Range
Material: ASTM A216 WCB, A351 CF3, CF3M, CF8, CF8M
Size: DN15-DN700
Working Pressure: Class 150-600 LB
Industries: Petroleum, Chemical, Natural Gas, Biochemical, Pharmaceutical, Environmental Protection, New Energy
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
