Key Specifications / Features
This basic type spiral wound gasket, produced by a reliable factory, features a PTFE soft tape filler, providing excellent chemical resistance and sealing performance. Rated for Class 900 LB, it is specifically designed for pipelines requiring protection against harsh chemicals and solvents. With low emission properties, it ensures minimal environmental impact while offering reliable sealing in critical applications, making it ideal for industries dealing with aggressive fluids and requiring durable, leak-proof performance.
- Model no.: MV-20250407-PG-01
- Hits: 4
- Categories: PTFE Gasket
- Tags: Spiral Wound Gasket, PTFE Filler Gasket, Class 900 LB Gasket
Detail Information

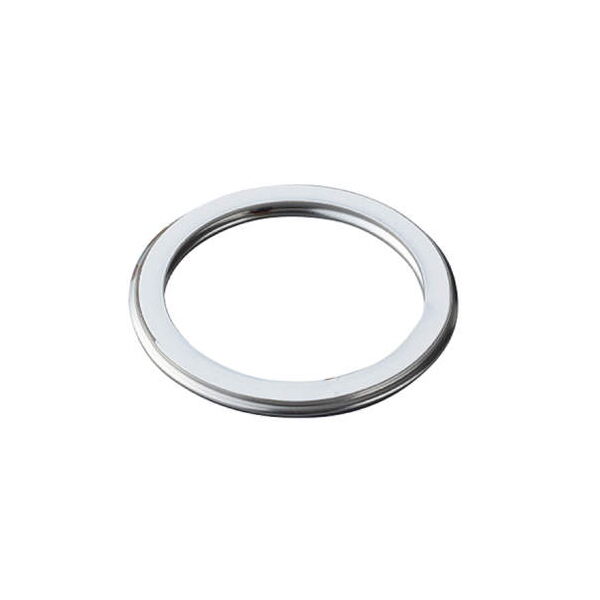

Product Name: Basic Type Spiral Wound Gasket
Main Materials: PTFE Soft Tape Filler, Various Metals
Operating Temperature Range: -200°C to +260°C
Maximum Operating Pressure: 15.5 MPaG (Class 900 LB)
Gasket Factor (m value): 3
Minimum Design Seating Stress (y value): 68.9 N/mm²
Minimum Seating Stress (y value): 39.2 N/mm²
Features
100% PTFE Soft Tape Filler: Offers superior chemical resistance for aggressive media.
Spiral Wound Design: Ensures reliable sealing with high flexibility.
Chemical and Solvent Resistance: Ideal for piping systems exposed to corrosive substances.
Versatile Application: Recommended for use in lines requiring protection against chemicals and solvents.
