Key Specifications / Features
- Model no.: MV-20250411-PG-01
- Hits: 2
- Categories: PTFE Gasket
- Tags: Spiral Wound Gasket, PTFE Filler Gasket, Low Emission Gasket
Detail Information

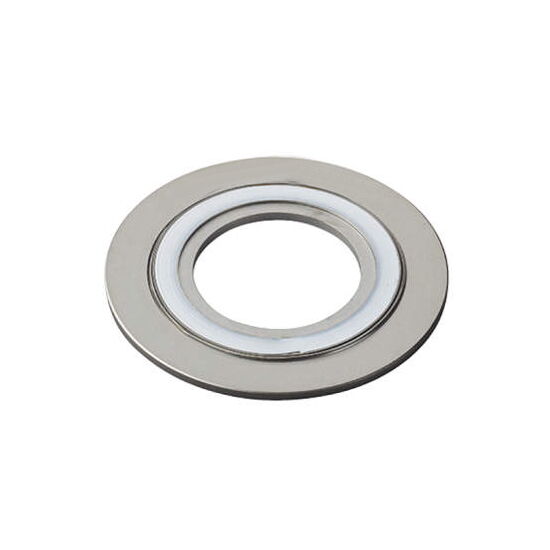

Product Name: Spiral Wound Gasket for Oxygen Service
Type: Spiral Wound Gasket with Inner & Outer Rings
Filler Material: PTFE
Inner & Outer Ring Materials: Various Metals
Operating Temperature Range: -200°C to +260°C
Maximum Operating Pressure: 15.5 MPaG (Class 900 LB)
Gasket Factor (m): 3
Minimum Design Seating Stress (y): 68.9 N/mm²
Minimum Seating Stress (y): 39.2 N/mm²
Features
Oxygen-Safe Construction: Degreased PTFE filler prevents oil contamination, making it ideal for oxygen, ozone, and other combustion-supporting gases.
Reliable Sealing: Dual ring design ensures enhanced sealing performance under high pressure and temperature conditions.
Material Compatibility: Suitable for a wide range of metals and service environments requiring stringent cleanliness and safety.
