Key Specifications / Features

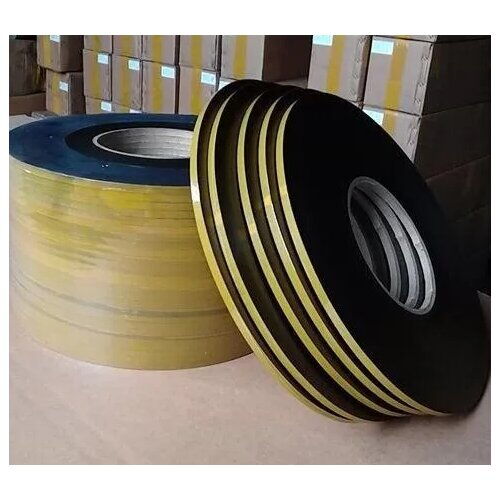

The Flexible Graphite Tape Plant in China specializes in producing customized tape cut from high-quality flexible graphite rolls. Widely used as a filler material in spiral wound gaskets, this tape offers excellent sealing performance, thermal stability, and chemical resistance for demanding industrial applications.
- Model no.: MV-20250422-GS-08
- Hits: 0
- Categories: Graphite Sheets & Yarns
- Tags: Flexible Graphite Tape
Detail Information
Product Name: Flexible Graphite Tape
Structure: Cut from Flexible Graphite Rolls
Material: Flexible Graphite
Carbon Content: 95% to ≥99.5%
Tensile Strength: ≥4.5 MPa
Density: 1.0 ± 0.05 g/cm³
Applications: Commonly used as filler material for spiral wound gaskets, flange gaskets, flexible graphite packing rings, industrial heat sinks, graphite for hydrogen fuel cells, automotive seals, nuclear power, petrochemical industry, etc.
Technical Specifications
|
Thickness |
0.2—0.5—1.0 mm |
|
Width |
Customizable to any width in mm |
|
Density |
1.0 ± 0.05 g/cm³ |
|
Tensile Strength |
≥4.5 MPa |
|
Compression Rate |
35% to 55% |
|
Rebound Rate |
≥15% |
|
Stress Relaxation Rate |
≤10% |
|
Ash Content |
≤1% |
|
Fluorine Content |
0 ppm to 50 ppm |
|
Carbon Content |
≥95% to ≥99% to ≥99.5% |
|
Sulfur Content |
≤1000 ppm to ≤50 ppm |
|
Chlorine Content |
≤50 ppm to ≤30 ppm |
Similar Products

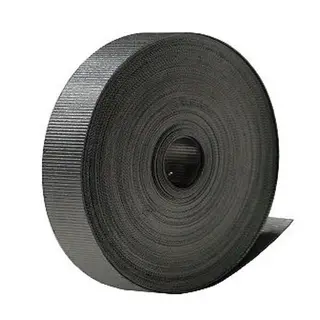

Corrugated Flexible Graphite Tape, 98% Carbon Content, 4 MPa
