Key Specifications / Features
The Corrugated Flexible Graphite Tape Plant produces high-performance tape with 98% carbon content and up to 4 MPa pressure resistance. Available in custom densities, this tape is ideal for use as a gasket surface covering material or as packing for valves and pumps, offering excellent flexibility, sealing, and chemical resistance.
- Model no.: MV-20250422-GS-06
- Hits: 0
- Categories: Graphite Sheets & Yarns
- Tags: Corrugated Graphite Tape, Flexible Graphite Tape, 4 MPa Graphite Tape
Detail Information

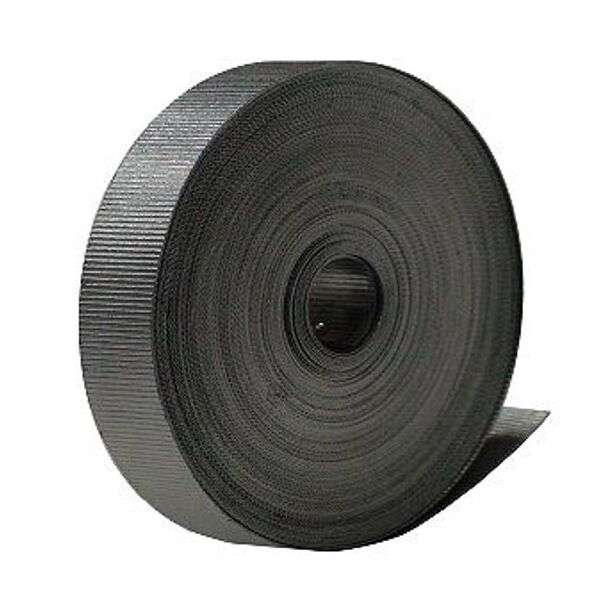

Product Name: Corrugated Flexible Graphite Tape
Structure: Flexible graphite roll is precisely cut into strips using specialized CNC lathes and custom blades. These strips are then processed through patterned rollers to form a corrugated profile.
Material: Flexible graphite
Carbon Content: 98%
Tensile Strength: ≥ 4.0 MPa
Density: Customizable upon request
Applications:
Commonly used as a surface covering material for metal toothed gaskets or corrugated gaskets
Serves as an emergency sealing solution during on-site repairs
Can be directly wrapped around pump or valve shafts for use as packing in dynamic and static sealing areas
