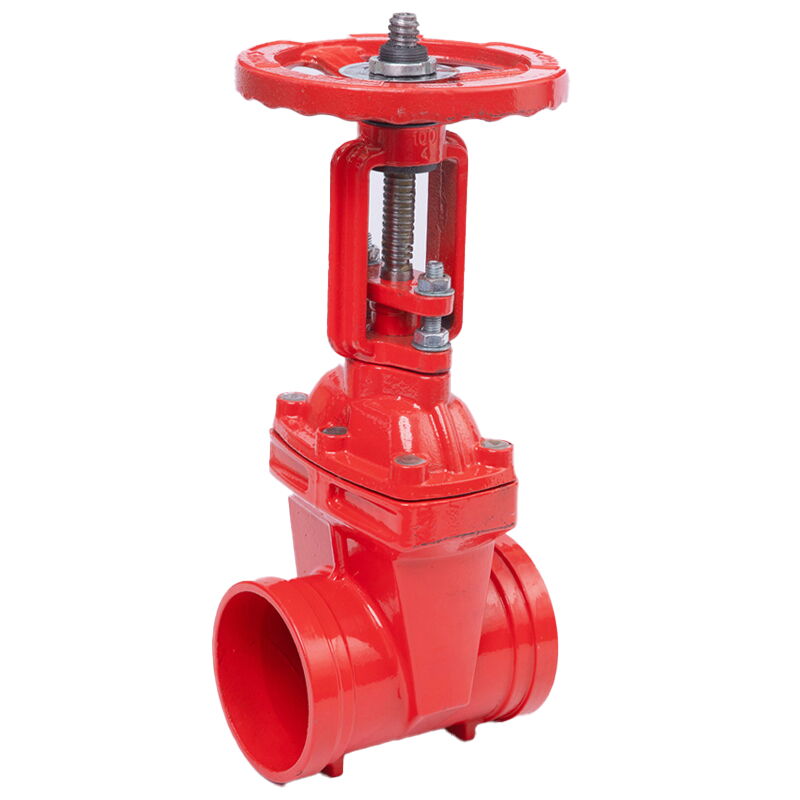

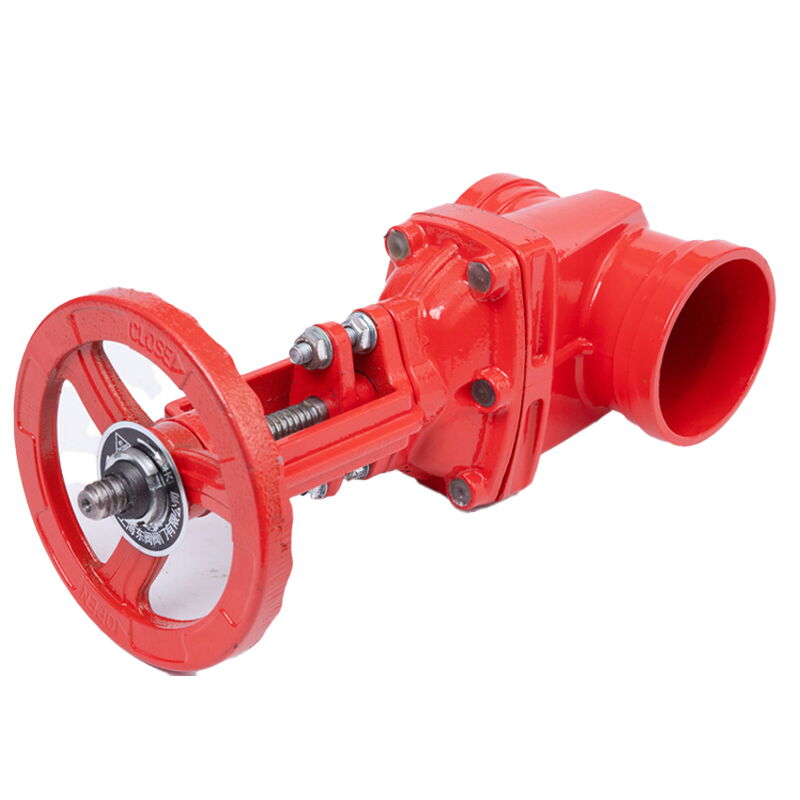

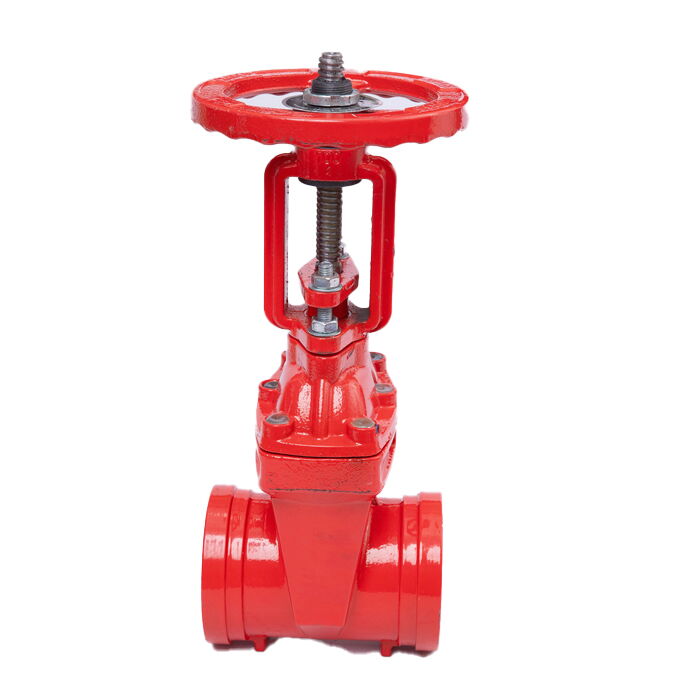

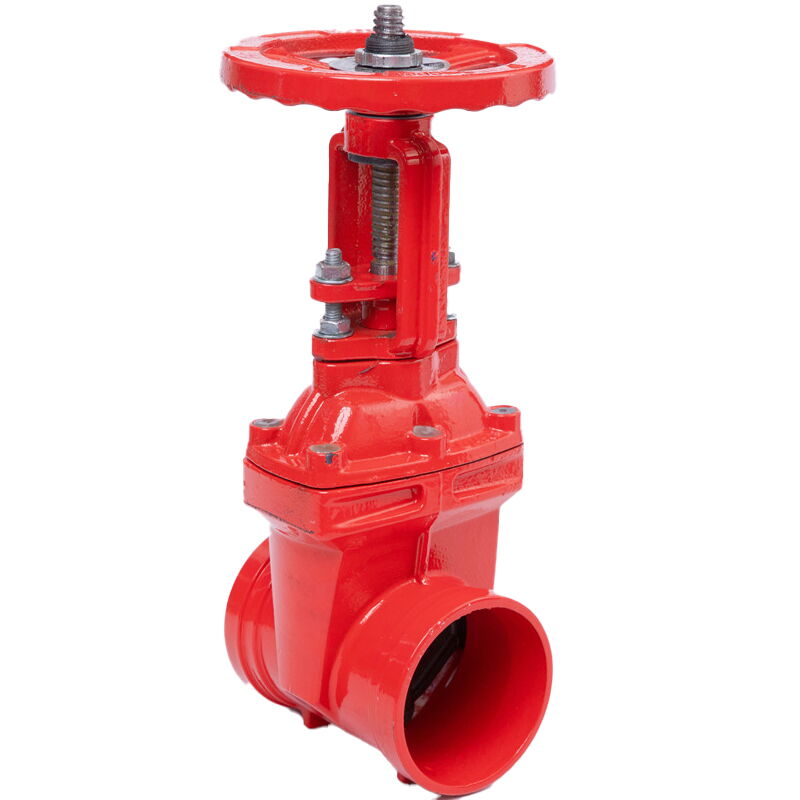

Grooved Gate Valve, BS 5163, EN 1074, QT450, DN100, PN16, RS
(API 624 Additional High Temperature Version)
Key Specifications / Features
The China Grooved Gate Valve Manufacturer offers a range of high-quality gate valves that adhere to BS 5163 and EN 1074 standards. These valves are constructed from ductile iron (QT450) and feature a rising stem handwheel with a soft seal. They are available in sizes from DN100 (4 inches) and rated for pressures up to PN16 and Class 150 LB. The valves are designed for reliable shut-off and isolation in water and neutral fluid pipelines, making them suitable for a variety of industrial applications.
- Model No.: MV-20250702-CSGTV-03
- Hits: 17
- Categories: Cast Steel Gate Valve
- Tags: Grooved Gate Valve, QT450 Gate Valve, DN100 Gate Valve
Detail Information
Product Name: Grooved Gate Valve
Key Features: Rising Stem, Soft Seal
Design Standards: BS 5163, EN 1074
Body Material: QT450
Size: DN100, 4 Inch
Pressure: PN16, Class 150 LB
End Connection: Grooved
Operation: Handwheel
Product Range
Material: Cast Iron
Nominal Diameter: DN50-DN300, 2-12 Inch
Pressure: PN16-PN64, Class 150-400 LB
Operating Temperature: 0°C to 80°C
Application: Suitable for municipal, industrial water systems, and wastewater treatment. Usable in metallurgy, petrochemical for media control. Suitable for highly corrosive environments like seawater.

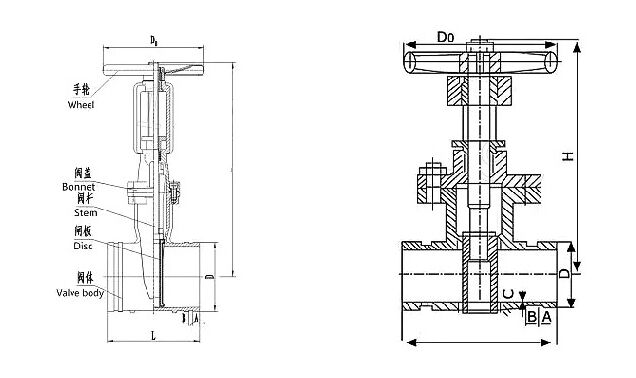

Grooved Gate Valve Dimension Table
DN | L (mm) | D (mm) | A (mm) | B (mm) | Do (mm) |
50 | 145 | 57 | 14.5 | 9.5 | 180 |
65 | 160 | 76 | 14.5 | 9.5 | 180 |
80 | 170 | 89 | 14.5 | 9.5 | 200 |
100 | 180 | 108 | 16 | 9.5 | 200 |
125 | 200 | 133 | 16 | 9.5 | 240 |
150 | 240 | 159 | 16 | 9.5 | 240 |
200 | 275 | 219 | 19 | 13 | 320 |
250 | 325 | 273 | 19 | 13 | 320 |
300 | 355 | 325 | 19 | 13 | 400 |
