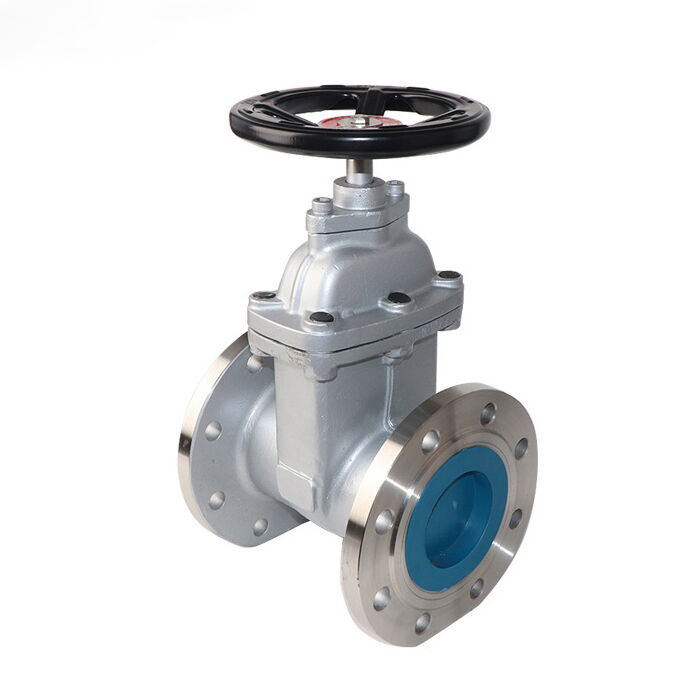

Soft Seal Wedge Gate Valve, Stainless Steel, DN15-DN600, NRS
(API 624 Additional High Temperature Version)
Key Specifications / Features
We are a reputable manufacturer of soft seal wedge gate valves, adhering to stringent standards such as API 600 and ASME B16.34. Our non-rising stem valves are crafted from high-quality stainless steel grades, including SS 304, 304L, 316, and 316L, ensuring corrosion resistance and durability. Available in sizes ranging from DN15 to DN600 and pressure ratings from PN16 to PN100, these valves are designed for reliable performance in various industrial applications. They feature flanged ends in raised face (RF), flat face (FF), and ring-type joint (RTJ) configurations.
- Model No.: MV-20250702-CSGTV-04
- Hits: 10
- Categories: Cast Steel Gate Valve
- Tags: Soft Seal Gate Valve, Wedge Gate Valve, Stainless Steel Gate Valve
Detail Information

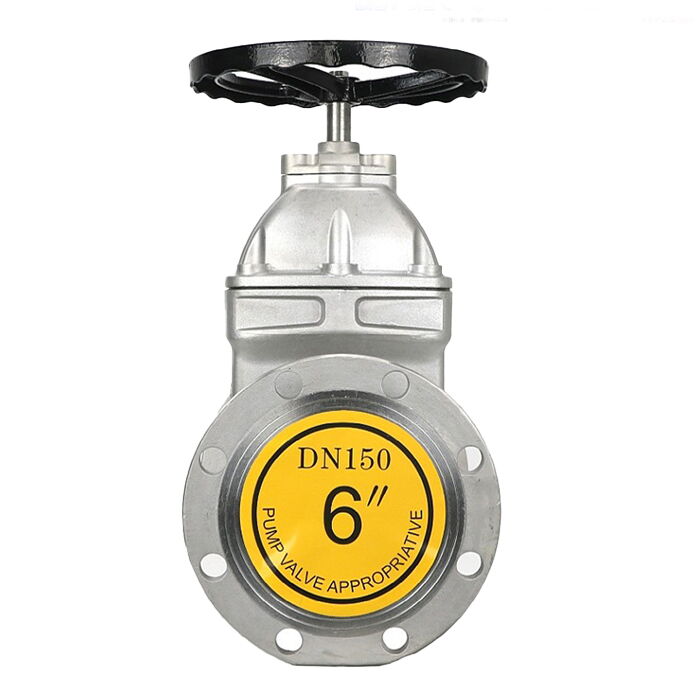

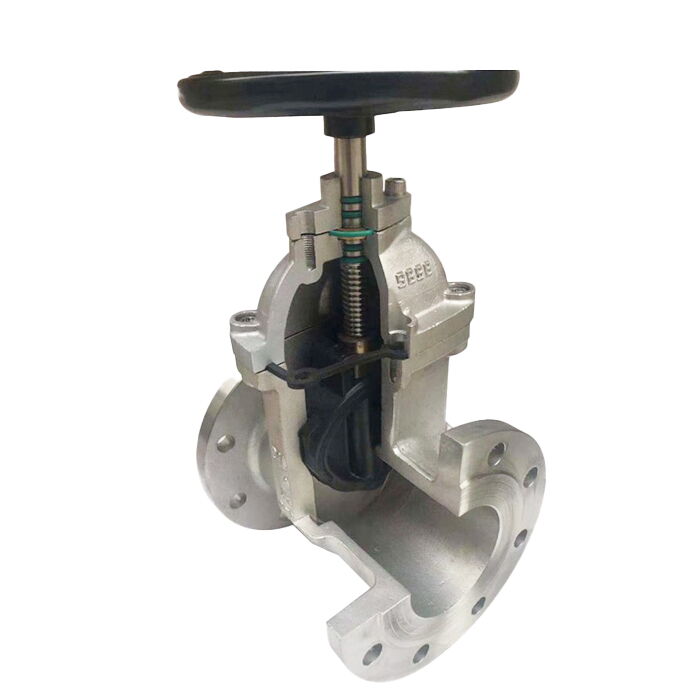

Product Name: Stainless Steel Soft Seal Gate Valve, Non-rising Stem
Design Standard: API 600, ASME B16.34
Material: Stainless Steel SS 304, 304L, 316, 316L, ASTM A351 CF3, CF3M, CF8, CF8M
Size: DN15-DN600, 1/2-24 Inch
Working Pressure: PN16-PN100, Class 150-600 LB
End Connection: Flanged (RF, FF, RTJ)
Flange Standard: ASME B16.5
Face to Face Standard: ASME B16.10
Testing Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Disc Type: Wedge Gate Disc
Actuation Range: 0-90°
Operation Time: Fast
Number of Discs: Single Disc
Customizable: Available
Actuator Type: Switch Type (Optional Adjustable, Intelligent, Explosion-proof)
Suitable Medium: Water, Acids and Alkalis
