Key Specifications / Features
The Low Sliding Friction Packing features a PTFE fiber sheath with a carbon fiber yarn center core, offering enhanced durability and reduced friction. Rated for 10.3 MPaG (ANSI Class 600 LB), this packing is designed for low emission performance, making it ideal for control valves. It ensures reliable sealing, minimizes wear, and provides long-lasting efficiency in high-pressure, high-temperature environments. Perfect for applications requiring precise flow control and minimal leakage.
- Model no.: MV-20250408-PP-02
- Hits: 1
- Categories: PTFE Packing
- Tags: PTFE Fiber Packing, Class 600 LB Packing, Low Sliding Friction Packing
Detail Information

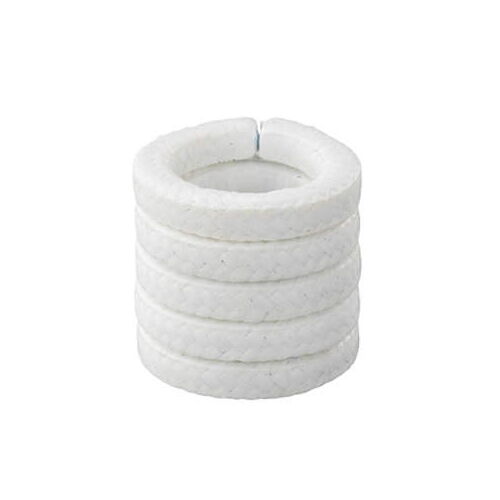

Product Name: Low Sliding Friction Packing for Control Valves
Type: Seal Packing
Main Materials: PTFE Fiber Sheath, Carbon Fiber Yarn, Special Lubricant
Maximum Fluid Temperature: +260°C
Maximum Pressure: 10.3 MPaG (ANSI Class 600 LB)
pH Range: 0 to 14
Features
Constructed with a carbon fiber yarn core and PTFE fiber sheath for optimal performance
Carbon fiber core ensures excellent heat resistance and elasticity
PTFE fibers offer superior chemical resistance and low sliding friction
Ideal for high-frequency operation and control valves
Available in spiral forms for easy maintenance
Suitable for use as single packings in applications up to Class 600 LB
