Key Specifications / Features

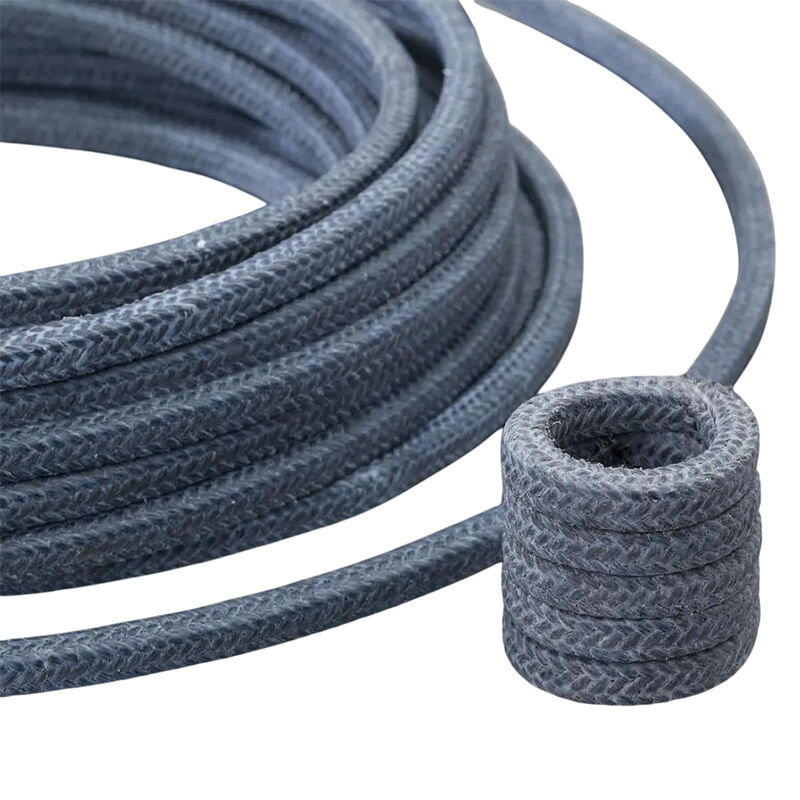

The PTFE Impregnated Braided Packing Plant offers high-quality pump shaft packing designed for demanding industrial applications. This packing is crafted from a blend of carbon and aramid fiber yarns, braided to ensure durability and strength. It is impregnated with PTFE, enhancing its chemical resistance and making it ideal for handling slurry fluids. Available in custom dimensions, this packing provides a reliable sealing solution, minimizing leakage and wear while maintaining performance in harsh chemical environments.
- Model No.: MV-20250718-PP-01
- Hits: 3
- Categories: PTFE Packing
- Tags: PTFE Impregnated Packing, Aramid Fiber Packing, Pump Packing
Detail Information
Product Name: PTFE Impregnated Braided Packing, Chemical-resistant
Material Composition: PTFE, Carbon, Aramid Fiber Yarn
Dimensions: Customized
pH: 1-13
Speed: Max 30 m/s
Medium: Slurry Fluids
Usage: Pumps, Agitators, Mixers, Refiners, Screw Conveyors
Operating Temperature Range: Maximum: 300°C (572°F), Minimum: -220°C (-364°F)
Applications: Food, Petrochemical, Pharmaceutical, Chemical, Sugar, Pulp and paper mills, Power stations
Our braided packing is crafted from a yarn that intimately blends aramid and carbon fibers. Each yarn is impregnated with PTFE. During the braiding operation, the packing is re-impregnated with a mixture of PTFE and an inert, food-grade lubricant. The mechanical strength of aramid fibers, combined with the heat dissipation capabilities of carbon fibers, endows our braided packing with unparalleled performance. Available in preformed packing rings upon request, this aramid/carbon packing is ideal for all rotating and reciprocating machinery applications, offering exceptional heat dissipation.
