Key Specifications / Features
The China Pure Aramid Fiber Packing Supplier offers premium 100% aramid fiber braided packing, impregnated with PTFE to enhance chemical resistance and durability. Available in customized dimensions, this packing is specifically designed for pumps, providing a reliable sealing solution in corrosive environments. Its high performance ensures minimal leakage, reduced maintenance, and extended service life, making it an ideal choice for industrial applications.
- Model No.: MV-20250718-PP-03
- Hits: 1
- Categories: PTFE Packing
- Tags: Aramid Fiber Packing, Braided Packing, PTFE Impregnated Packing
Detail Information

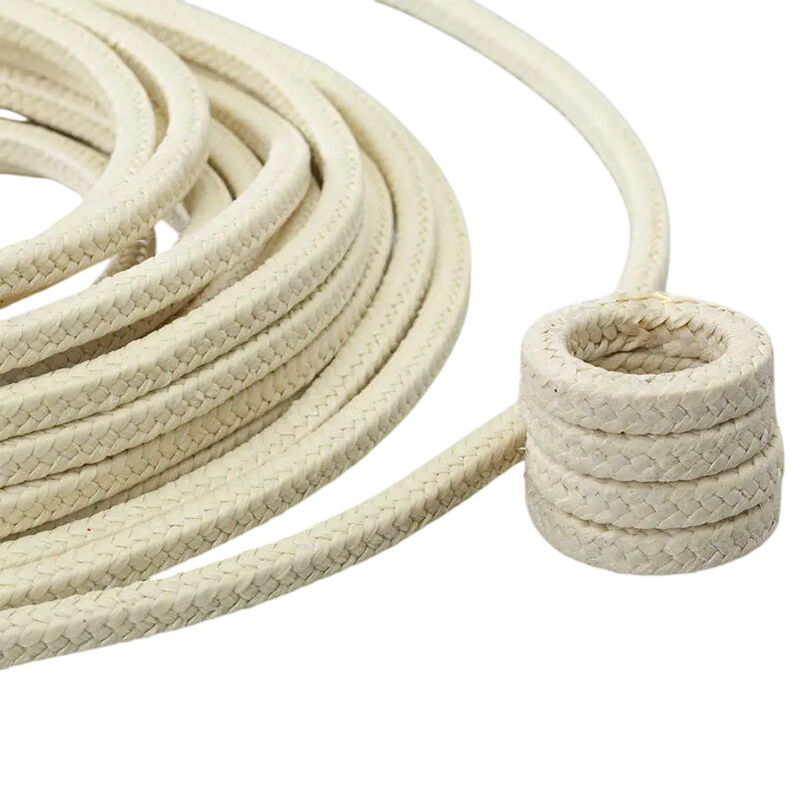

Product Name: Pure Aramid Fiber Packing, PTFE Impregnated
Type: Braided Packing
Material: PTFE, 100% Aramid Fiber
Dimensions: Customized
Characteristics: Chemical-resistant
Parameters: Speed < 25 m/s, pH 2-13
Fluids: Slurry fluids
Usage: Pumps, Rotary Movements
Operating Temperature Range: Maximum 300°C (572°F), Minimum -220°C (-364°F)
Applications: Pumps, chemical industry, petrochemical applications, paper industry, food industry, rotary applications
Our packing is crafted from continuous 100% aramid fibres, renowned for their exceptional strength and durability. Each individual yarn undergoes a meticulous impregnation process with PTFE, utilizing our proprietary "Filcoat" technology. This ensures uniform coating and enhanced performance. Following this, the yarns are re-impregnated with a blend of PTFE and an inert, food-grade lubricant during the braiding stage. This dual-impregnation process results in a packing material that offers superior mechanical performance and reliability. Available in preformed packing rings upon request, our 100% aramid packing fibres deliver very high mechanical performance, making them ideal for demanding applications.
