Key Specifications / Features
Our Polyacrylic Yarn Braided Packing is a high-performance sealing solution crafted from premium polyacrylic fiber and impregnated with PTFE for enhanced durability and reliability. Available in sizes ranging from 6 to 25.4 mm and capable of handling pressures up to 100 bar, this packing is specifically designed for dynamic sealing applications, ensuring leak-free performance and long-lasting service in demanding industrial environments.
- Model No.: MV-20250719-PP-04
- Hits: 2
- Categories: PTFE Packing
- Tags: Polyacrylic Fiber Packing, PTFE Impregnated Packing, Pump Packing
Detail Information

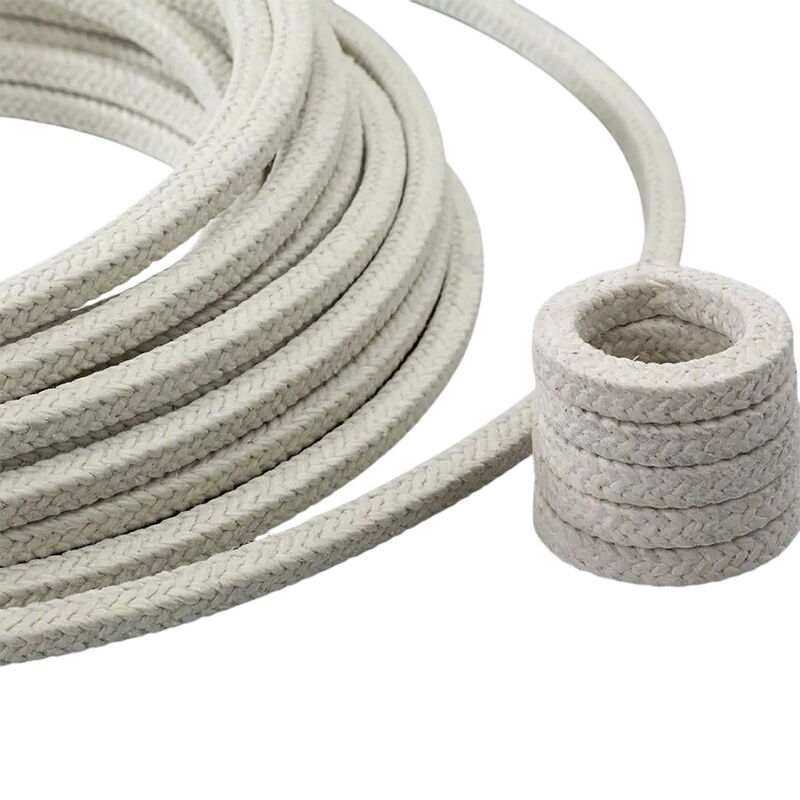

Product Name: Polyacrylic Yarn Braided Packing
Material: Polyacrylic Yarn, PTFE
Dimensions: 6-25.4 mm
Pressure: 0-100 bar
Speed: <15 m/s
pH: 1-13
Usage: Pumps
Operating Temperature Range: Minimum -50°C (-58°F), Maximum 260°C (500°F)
Applications: All industries using chemicals, hydrocarbons.
Limitation: Not recommended for strong acids and bases.
Packing for food industry; compliant with CE 1935/2004 for dynamic sealing solutions. Made of special polyacrylic yarns, each single yarn impregnated with PTFE. The packing is then re-impregnated during the braiding operation in a bath consisting of PTFE mixed with inert lubricants. Limitation: Not suitable for strong acids and bases. Available in preformed packing rings on request. Designed for food packing standard applications.
