Key Specifications / Features

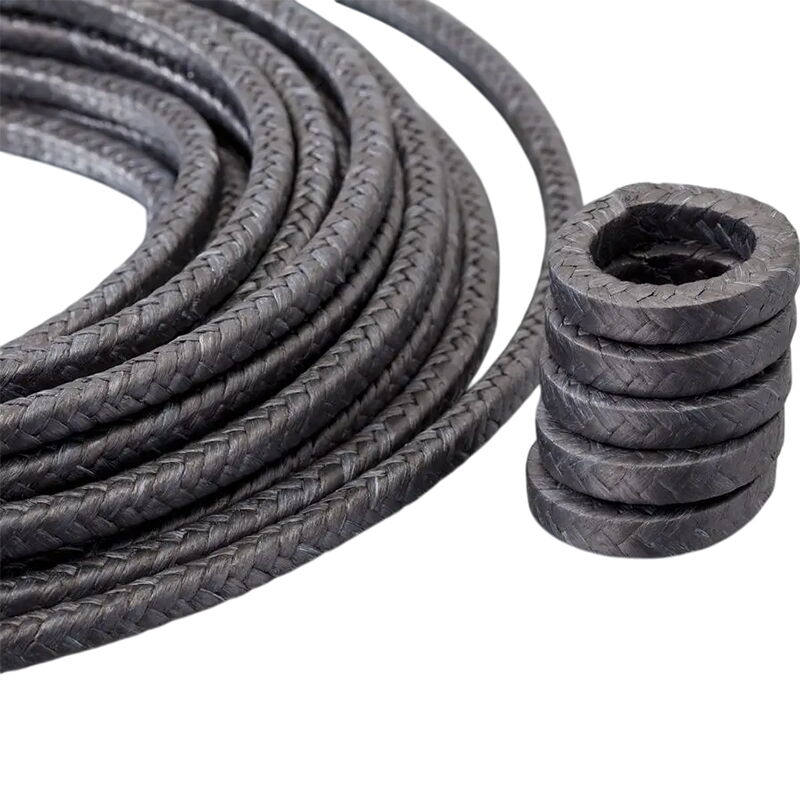

The Custom PTFE Braided Packing Supplier offers specialized packing solutions made from PTFE yarns and graphite, designed for dynamic sealing applications. Available in sizes ranging from 6 to 25.4 mm, this packing can handle pressures up to 80 bar and operate at speeds below 20 m/s. Its unique blend of materials ensures excellent wear resistance and low friction, making it ideal for high-performance sealing in dynamic environments.
- Model No.: MV-20250719-PP-03
- Hits: 4
- Categories: PTFE Packing
- Tags: Graphite Packing, Braided Packing, PTFE Packing
Detail Information
Product Name: Custom PTFE Braided Packing
Material: PTFE, Graphite
Dimensions: 6-25.4 mm
Pressure: 0-80 bar
Speed: < 20 m/s
pH: 0-14
Usage: Rotary Machines
Medium: Chemically Aggressive Fluids
Operating Temperature Range: Maximum 250°C (482°F), Minimum -200°C (-328°F)
Applications: Chemical industry, paper industry, food industry, rotary applications
Cost-effective packing for aggressive environments, designed for dynamic sealing solutions. Made of 100% PTFE silk yarns, pre-treated with continuous graphite impregnation then re-impregnated with a silicon lubricant. Available in preformed packing rings upon request. This graphited PTFE packing is dedicated to applications on rotary pumps handling chemically aggressive fluids.
