Key Specifications / Features

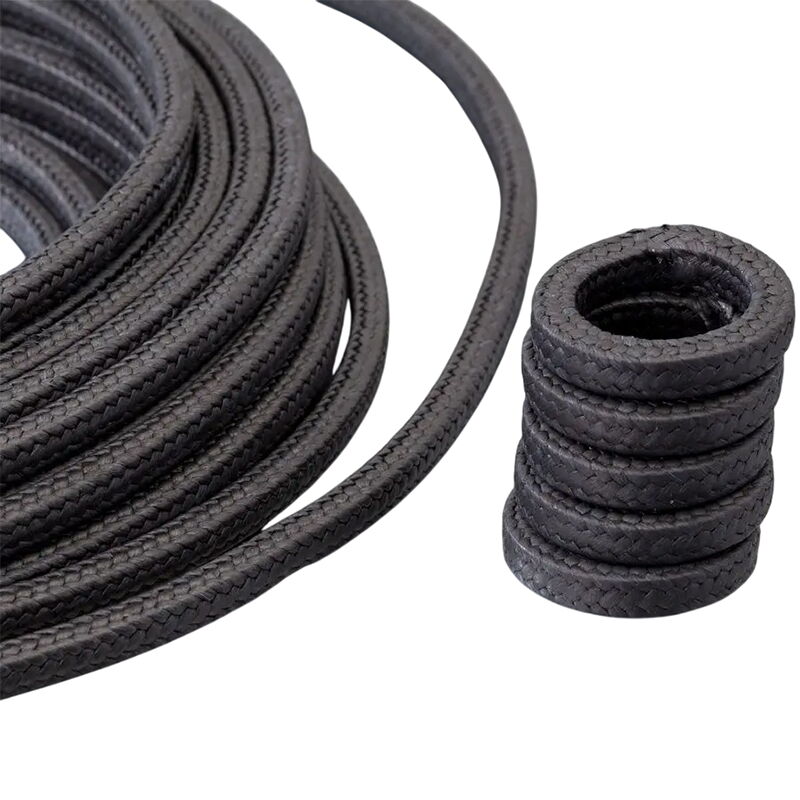

The China Graphited PTFE Packing Factory produces high-performance braided packing made from 100% PTFE silk yarns impregnated with graphite. This packing is designed for high-speed pumps, offering sizes from 4 to 25.4 mm and capable of handling pressures up to 110 bar. The combination of PTFE and graphite provides excellent lubrication and wear resistance, making it ideal for applications where high speed and reliability are critical.
- Model No.: MV-20250719-PP-02
- Hits: 3
- Categories: PTFE Packing
- Tags: Pump Packing, Graphite Packing, PTFE Packing
Detail Information
Product Name: Graphited PTFE Packing, Braided Packing
Material: PTFE, Graphite
Dimensions: 4-25.4 mm
Pressure: 0-110 bar
Speed: < 26 m/s
pH: 0-14
Usage: Rotary Machines, High-speed Pumps
Medium: Suitable for All Fluids
Operating Temperature Range: Minimum -200°C (-328°F), Maximum 300°C (572°F)
Application: Chemical Industry, Paper Industry, Food Industry
Features
Very low friction coefficient
Graphited PTFE packing, dedicated to applications on rotary pumps with chemically aggressive fluids
Outstanding heat transfer coefficient
Good electrical conductor, no build-up of static charge
Graphited PTFE packing, dedicated to applications on rotary pumps with chemically aggressive fluids. Packing made of 100% PTFE silk yarns, pre-treated with continuous graphite impregnation then re-impregnated with a silicon lubricant. Available in preformed packing rings, on request.
