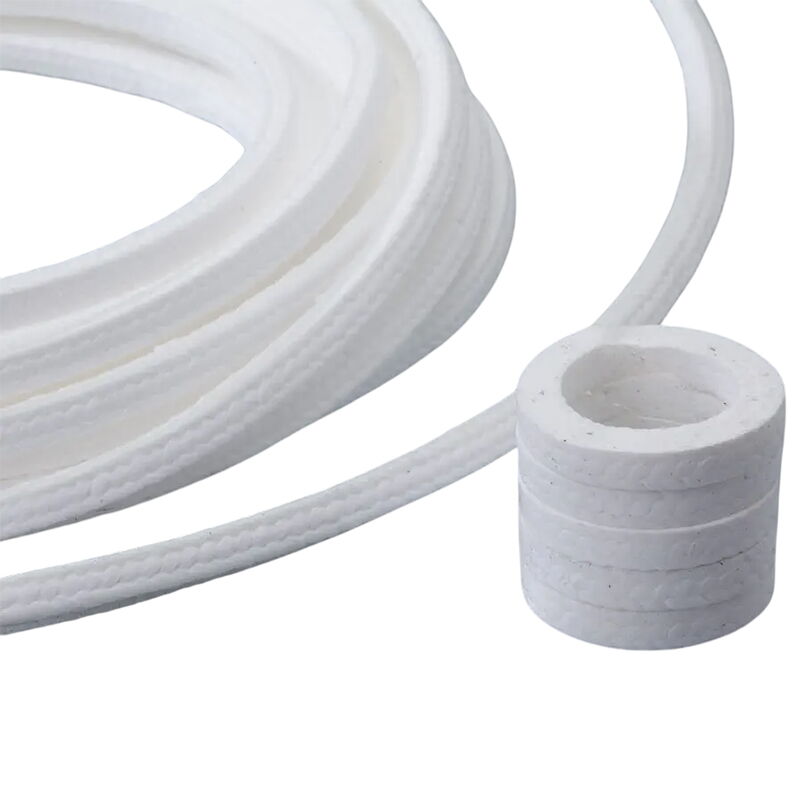

Pure PTFE Braided Packing, 4-20 mm, 100 bar, for Valve/Pump
Key Specifications / Features
The China Pure PTFE Braided Packing Plant offers high-quality valve stem and pump shaft packing made from 100% PTFE silk yarn. This packing is braided to ensure durability and flexibility, with sizes ranging from 4 to 20 mm and capable of withstanding pressures up to 100 bar. Designed for chemically aggressive fluids, it provides excellent resistance to corrosion and wear, making it ideal for demanding industrial applications.
- Model No.: MV-20250719-PP-01
- Hits: 17
- Categories: PTFE Packing
- Tags: Braided Packing, PTFE Packing, Valve Packing
Detail Information
Product Name: Pure PTFE Braided Packing, Valve Stem Packing
Material: PTFE
Dimensions: 4-20 mm
Pressure: 0-100 bar
Parameters: Speed < 10 m/s, pH 0-14
Fluids: Chemically Aggressive Fluids
Usage: Pumps, Valves
Operating Temperature Range: Maximum 280°C (536°F), Minimum -200°C (-328°F)
Applications: Chemical, pharmaceutical, and food industries
Characteristics:
Chemical-resistant
very low friction coefficient
perfect chemical inertness
PTFE packing for dynamic applications is made of 100% PTFE silk yarns, each single yarn being impregnated with PTFE. The packing is then re-impregnated with a mix of PTFE and inert lubricant during the braiding operation. Available in preformed packing rings, on request. The chemical inertness of PTFE ensures performance in dynamic applications.
