Key Specifications / Features
The China PTFE Valve Packing Manufacturer specializes in producing packing for oxygen services. This packing is made from 100% PTFE yarn, braided and impregnated with PTFE dispersion to ensure high purity and chemical resistance. It is suitable for valves and control valves, with dimensions ranging from 5 to 20mm and capable of handling pressures from 0 to 300 bar. This packing is ideal for applications requiring high purity and corrosion resistance, such as in the food, pharmaceutical, and chemical industries.
- Model No.: MV-20250722-PP-02
- Hits: 10
- Categories: PTFE Packing
- Tags: Braided Packing, 300 bar Packing, PTFE Packing
Detail Information

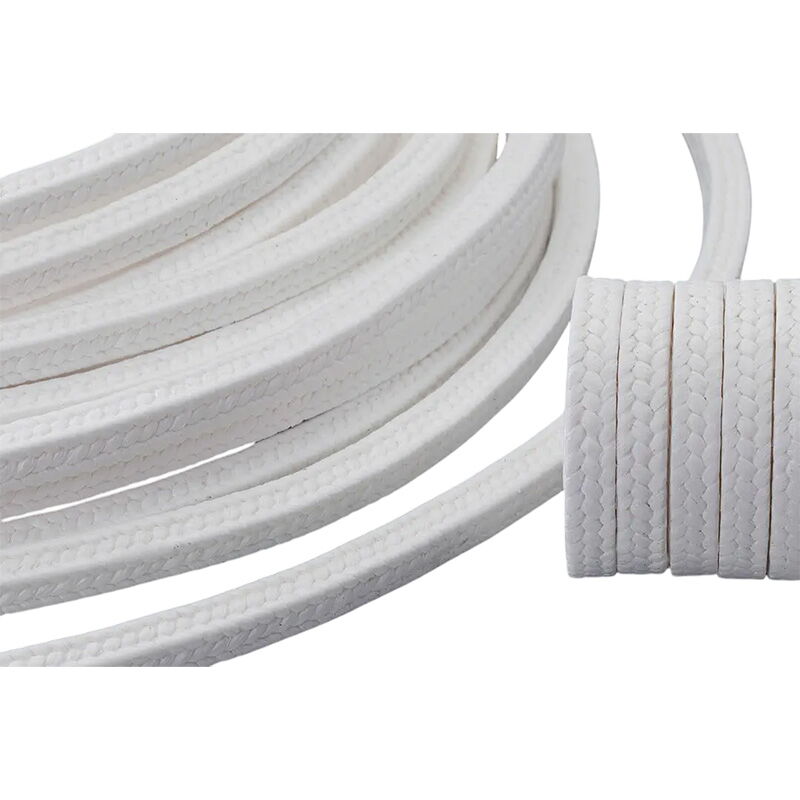

Product Name: PTFE Packing for Oxygen Services
Material: PTFE
Dimensions: 5-20mm
Pressure: 0-300 bar
Speed: < 5 m/s
pH: 0 - 14
Applications: Chemical, Paper, Food industry
Operating Temperature Range:
Minimum: -200 °C (-328 °F)
Maximum: 300 °C (572 °F)
Material: Valves, Control Valves
PTFE packing designed for oxygen compatibility. Made of 100% PTFE silk yarns, impregnated with PTFE, and treated to be perfectly compatible for use in oxygen-rich environments. Suitable for a wide range of industrial applications requiring high purity and chemical resistance. Available in preformed packing rings upon request.
