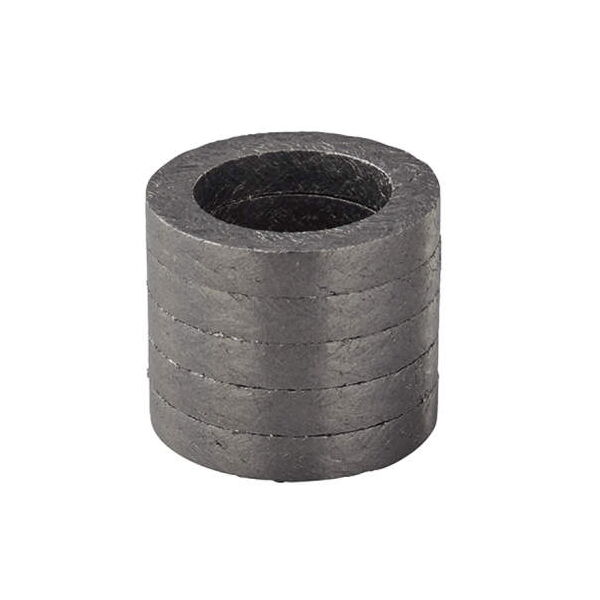

Yarn Braided Valve Packing, Flexible Graphite, Class 1500

Key Specifications / Features

This yarn braided valve packing is made from flexible graphite yarn reinforced with nickel alloy, ensuring superior strength and durability. Rated for high-pressure applications up to 25.9 MPaG (Class 1500 LB valve), it is designed to withstand extreme temperatures and pressures while providing excellent sealing performance. With low emission characteristics, it offers enhanced environmental safety and reliability, making it ideal for high-temperature, high-pressure industrial systems.

Model No.: MV-20250407-GP-01
Hits: 13
Categories: Graphite Packing
Tags: Flexible Graphite Packing, Braided Packing, Low Emission Packing

Request a quote

Detail Information

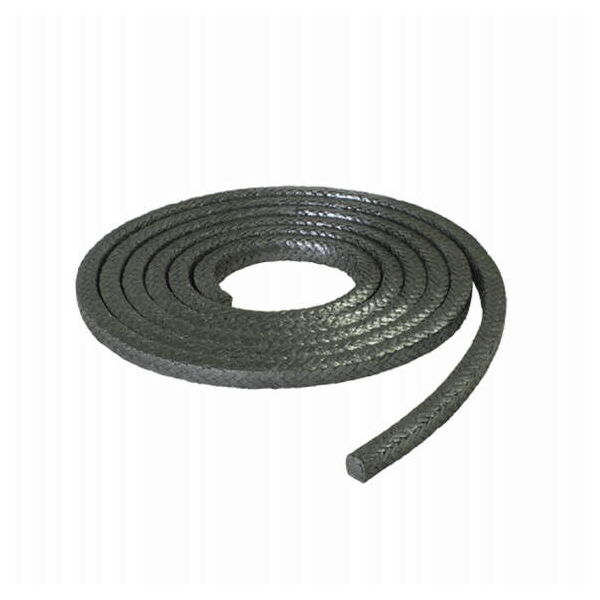

Product Name: Yarn Braided Packing for Valves, Low Emission
Type: Seal Packing
Materials: Flexible Graphite, Nickel Alloy, Special Lubricant
Temperature Range: -270°C to +650°C (Oxidizing Atmospheres: maximum temperature 450°C or less)
Maximum Pressure: 25.9 MPaG (Class 1500 LB)
pH Range: 0 to 14
Application: Gland Packings for Valves

Features

Braid-over-Braid Design: Constructed using flexible graphite yarn, reinforced with nickel alloy for strength and durability.
Enhanced Sealing: Surface treated with fine graphite powder to optimize sealing performance.
High-Temperature & High-Pressure Resistance: Designed for use in demanding valve applications with high-temperature and high-pressure environments.
Reliable Performance: Provides consistent sealing under extreme conditions, making it ideal for industrial applications requiring robust packing solutions.
