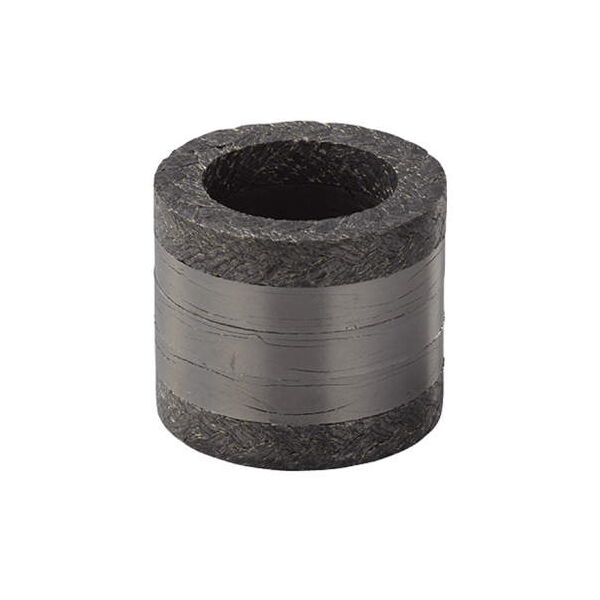

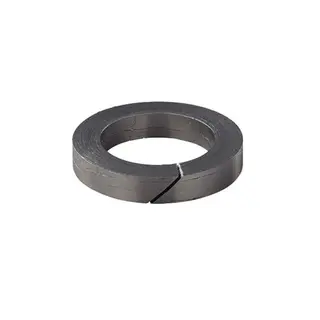

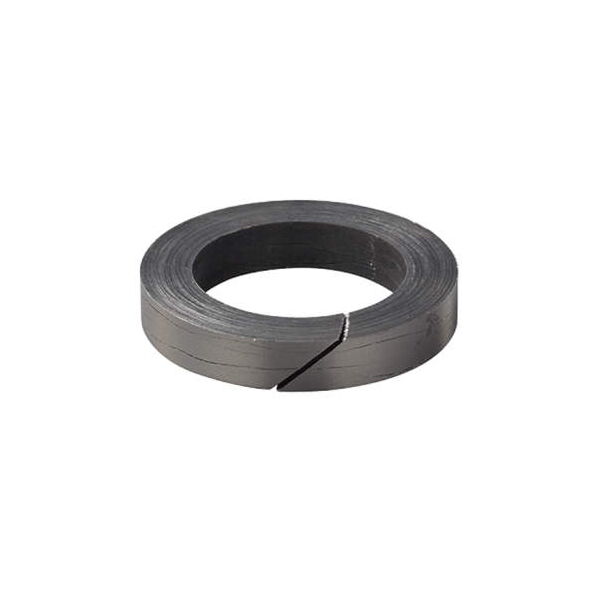

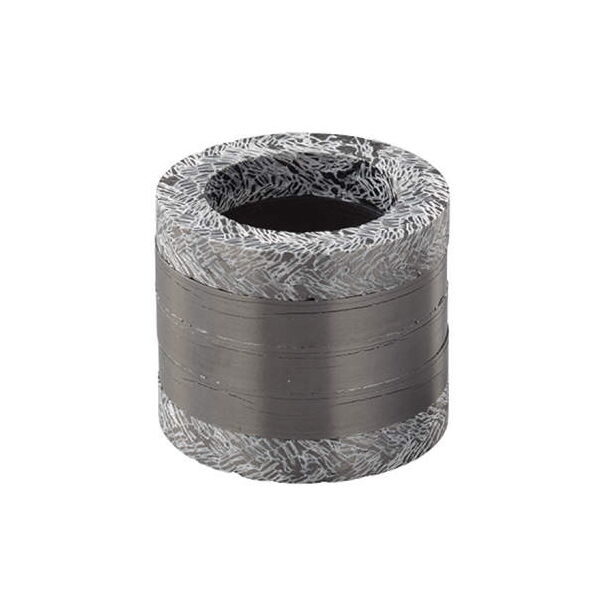

Low Emission Graphite Packing, Nickel Alloy Mesh, Class 4500
Key Specifications / Features
Our Low Emission Graphite Packing Factory specializes in producing high-quality packing materials designed for demanding applications. These packings are made from flexible graphite sheets reinforced with nickel alloy mesh, ensuring low sliding friction and excellent durability. With a pressure rating of 77.6 MPaG, they are specifically designed for nuclear applications where reliability and low emission are critical. These packings offer exceptional sealing performance, making them ideal for use in high-pressure and high-temperature environments.
- Model No.: MV-20250402-GP-01
- Hits: 25
- Categories: Graphite Packing
- Tags: Graphite Packing, Low Emission Packing
Detail Information
Product Name: Graphite Packing for Valves, Seal Packing
Material Composition: Flexible Graphite, Nickel Alloy, PTFE
Fluid Temperature: -200°C to +400°C (Packing temperature must be kept at 350°C or less)
Maximum Pressure: 77.6 MPaG (Class 4500 LB)
pH Range: 0 to 14
Chlorine Ion Concentration: ≤100 ppm
Applications: Designed for nuclear applications requiring controlled chlorine ion concentration
Features
Low sliding friction for reduced valve stem wear
Flexible graphite sheet with nickel alloy mesh for easy handling
Enhanced sealability and chemical resistance
Internal periphery treated with PTFE and fine graphite powder for lubrication
