Key Specifications / Features
The Low Emission Graphite Packings are high-performance sealing solutions made from flexible graphite with a special lubricant, ensuring superior sealing under extreme conditions. Designed for high-temperature, high-pressure valve applications, they withstand pressures up to Class 4500 LB (77.6 MPaG) while minimizing emissions. Ideal for industrial environments requiring reliable, durable, and efficient sealing performance.
- Model no.: MV-20250401-GP-01
- Hits: 1
- Categories: Graphite Packing
- Tags: Low Emission Packing, Gland Packing, Graphite Packing
Detail Information

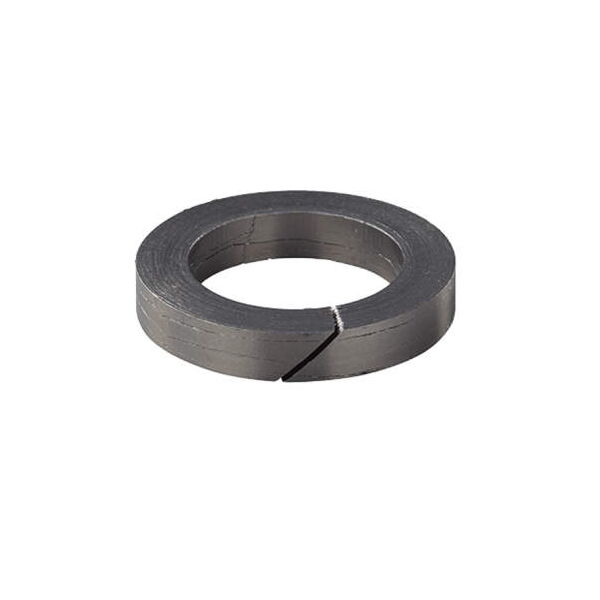

Product Name: Flexible Graphite Gland Packing
Type: Seal Packing, Gland Packings for Valves
Material: Flexible graphite with special lubricant
Structure: Special folded cross-section for low sliding friction
Color: Black
Application: High-temperature, high-pressure valves
Metal Content: None
Technical Data
Temperature Range: -270°C to +650°C (Packing temperature ≤ 450°C)
Pressure Rating: Up to 77.6 MPaG (Class 4500 LB)
pH Range: 0 to 14
Features
Excellent sealing performance
Low valve stem friction
High chemical resistance
Designed for extreme operating conditions
