Key Specifications / Features

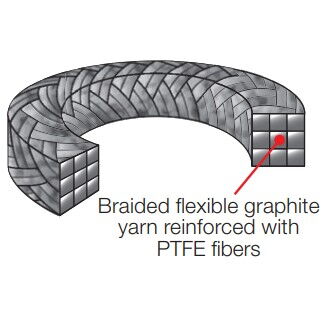

This non-metallic valve packing features yarn braided flexible graphite yarn reinforced with PTFE fiber for enhanced strength and durability. Rated for 15.5 MPaG pressure applications, it is designed specifically for control valves, offering superior sealing performance. With low emission properties, it ensures environmental safety and reliable operation in demanding industrial environments, making it an excellent choice for applications requiring precise control and leak prevention.
- Model no.: MV-20250407-GP-02
- Hits: 1
- Categories: Graphite Packing
- Tags: Low Emission Packing, Flexible Graphite Packing, Non-Metallic Packing
Detail Information

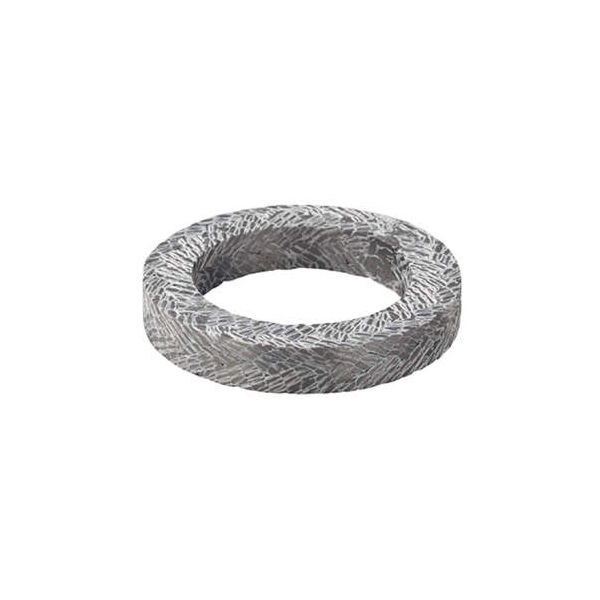

Product Name: Non-Metallic Yarn Braided Packing for Control Valves, Low Emission
Type: Adapter Packing
Main Materials: Flexible Graphite, PTFE Fiber Reinforced
Fluid Temperature: -270°C to +455°C (Packing temperature must be kept at 350°C or less.)
Maximum Pressure: 15.5 MPaG (Class 900 LB)
Features
Adapter-Dedicated Design: Specifically engineered for adapter applications, ensuring optimal performance.
Improved Sliding Performance: Flexible graphite yarn combined with PTFE fiber reduces friction for smooth operation.
High Mechanical Strength: Reinforced with PTFE fiber to enhance durability and strength under pressure.
Reliable Sealing: Combines the benefits of graphite and PTFE to ensure effective sealing in various valve applications.
