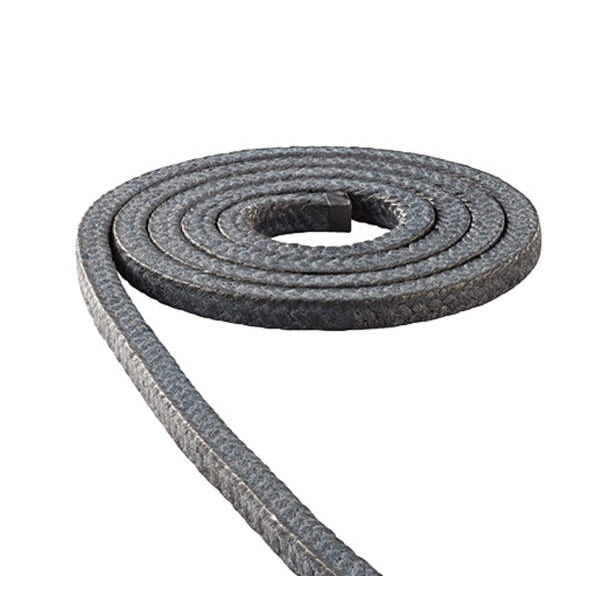

Graphite Braided Packing, Aramid Fiber Reinforced, Class 600

Key Specifications / Features

This flexible graphite braided packing is designed for reliable performance in valve and low-speed rotary machine applications. Reinforced with aramid fiber for added strength and durability, it features an interlocking braided design for enhanced sealing. Rated for Class 600 LB pressure, it provides low emission and effective sealing under demanding conditions, making it an ideal choice for systems requiring long-lasting, leak-proof performance in high-temperature and high-pressure environments.

Model no.: MV-20250407-GP-03
Hits: 0
Categories: Graphite Packing
Tags: Low Emission Packing, Flexible Graphite Packing, Valve Packing

Request a quote

Detail Information

Product Name: Interlocking Braided/Yarn Braided Gland Packing
Type: Seal Packing
Main Materials: Flexible Graphite, Aramid Fiber Reinforced, PTFE, Special Lubricant
Fluid Temperature: -200°C to +350°C
Maximum Pressure: 10.3 MPaG (Class 600 LB)
pH Range: 0 to 14
Usage: General Valve, Low Speed Rotary Machine

Features

Interlocking-Braid Design: Provides enhanced durability and sealing performance.
Aramid Fiber-Reinforced Graphite Yarn: Offers increased strength and resistance to wear and tear.
Lubricant Impregnation: Special lubricant treatment improves friction resistance and enhances packing life.
Versatile Application: Suitable for general-purpose valves and low speed rotary machine, ensuring reliable performance in diverse industrial environments.
