Key Specifications / Features

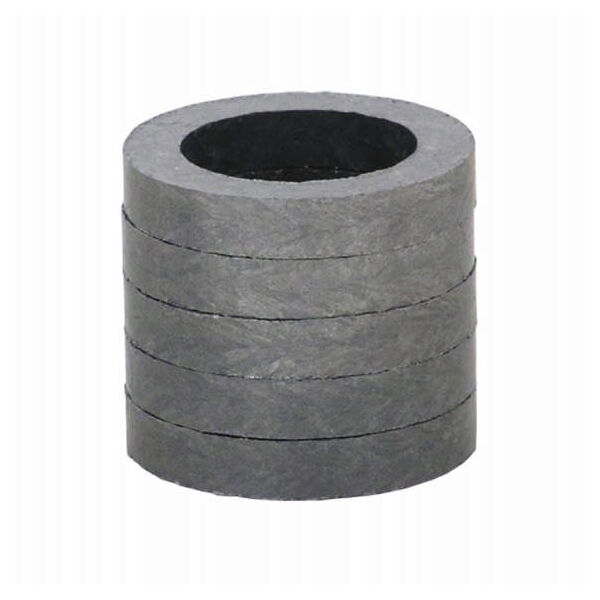

The Braided Gland Packing is crafted from flexible graphite yarn, reinforced with organic fiber for added strength and durability. Rated up to 5.3 MPaG (Class 300 LB), this packing offers low emission performance, making it ideal for general valve applications. It provides reliable sealing and resistance to high temperatures and pressures, ensuring long-lasting performance and effective leakage control in a wide range of industrial environments.
- Model no.: MV-20250408-GP-01
- Hits: 1
- Categories: Graphite Packing
- Tags: Gland Packing, Flexible Graphite Packing, Braided Packing
Detail Information
Product Name: Braided Packing, Gland Packings for General Valves
Type: Seal Packing
Main Materials: Flexible Graphite Yarn, Organic Fiber Reinforced, Special Lubricant
Fluid Temperature: -270°C to +400°C (Recommended max: 350°C)
Pressure: Up to 5.3 MPaG (ANSI Class 300 LB)
pH Range: 0 to 14
Features
Yarn braided design for general-purpose valve sealing
Excellent thermal resistance with a wide operating temperature range
Reinforced with organic fiber for added strength and stability
Special lubricant enhances sealing performance and reduces wear
