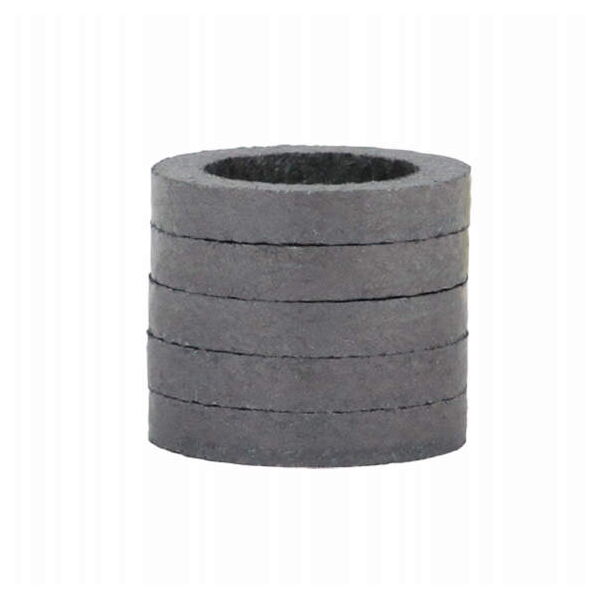

Flexible Graphite Braided Packing, SS Wire, 15.5 MPaG, CL900

Key Specifications / Features

The Flexible Graphite Braided Packings are designed for medium-pressure and medium-temperature valve applications. Reinforced with stainless steel wire, these packings offer exceptional durability and strength, handling pressures up to 15.5 MPaG (Class 900 LB). Engineered for low emission, they provide reliable sealing and effective leak prevention in industrial systems, ensuring consistent performance and long-lasting reliability in valves operating under moderate conditions.

Model no.: MV-20250409-GP-01
Hits: 0
Categories: Graphite Packing
Tags: Braided Packing, Flexible Graphite Packing, Class 900 LB Packing

Request a quote

Detail Information

Product Name: Flexible Graphite Braided Packings
Main Materials: Flexible Graphite, Stainless Steel, PTFE, Special lubricant
Fluid Temperature: -270°C to +455°C (Packing temperature must be kept at 350°C or less)
Pressure: 15.5 MPaG max. (Class 900 LB)
pH Range: 0 to 14

Features

Low Sliding Friction: Braided packing made with flexible graphite yarn reinforced with stainless steel wire, treated with a liquid lubricant to prevent liquid penetration.
Enhanced Performance: Incorporates PTFE and fine graphite powder to reduce sliding friction, making it ideal for medium-pressure, medium-temperature valves and high-performance applications.
Sealing & Friction Balance: Offers excellent sealing performance while maintaining low stem sliding friction.
Valve Compatibility: Suitable for use in valves up to Class 900 LB, providing reliable sealing in demanding valve applications.
