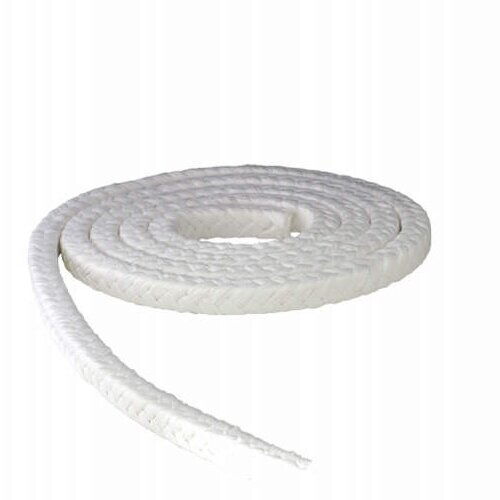

Square-braid Gland Packing, PTFE Fiber, 10.3 MPaG, Class 600
Key Specifications / Features
The Square-braid Gland Packing is made from high-quality PTFE fibers impregnated with PTFE dispersion, offering excellent sealing performance. Rated for 10.3 MPaG and ANSI Class 600 LB, it is designed for use in valves and rotating equipment, ensuring reliable leakage prevention and extended service life in demanding applications. Its robust construction and chemical resistance make it ideal for industries requiring durable, high-performance packing solutions.
- Model No.: MV-20250408-PP-01
- Hits: 11
- Categories: PTFE Packing
- Tags: Braided Packing, Gland Packing, PTFE Fiber Packing
Detail Information
Product Name: Square-braid Gland Packing, PTFE Fiber Packing
Type: Adapter Packing
Main Material: PTFE Fiber
Maximum Fluid Temperature: +200°C
Maximum Pressure: 10.3 MPaG (suitable for ANSI Class 600 LB Valves)
pH Range: 0 to 14
Usage: Valves and Rotating Equipment
Features
Square-braid construction ensures durability and tight sealing performance
Made with PTFE fiber impregnated with PTFE dispersion for enhanced chemical resistance
Oil-free composition prevents contamination—ideal for sensitive fluids like oxygen
Suitable for use in applications requiring high purity and non-contaminating materials
