Low Torque Gland Packing, Flexible Graphite, SS Wire, CL1500

Key Specifications / Features

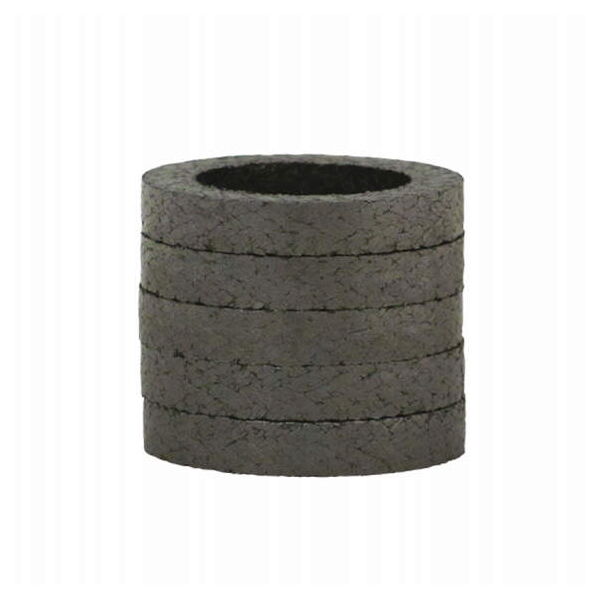

Our Low Torque Gland Packing is expertly braided from flexible graphite yarn and reinforced with stainless steel wire for enhanced durability and strength. Designed to handle pressures up to 25.9 MPaG (Class 1500 LB), this packing provides reliable sealing performance in high-pressure applications. Its low emission properties ensure minimal leakage, making it an ideal solution for industries prioritizing environmental safety and efficiency.

Model No.: MV-20250410-GP-02
Hits: 23
Categories: Graphite Packing
Tags: Gland Packing, Flexible Graphite Packing, Low Torque Packing

Request a quote

Detail Information

Product Name: Low Torque Braided Gland Packing for High Temperature, Medium Pressure Valves
Main Constituents: Flexible Graphite, Stainless Steel, Special Lubricant
Fluid Temperature: -270°C to +650°C (Note: In oxidized atmosphere, max 450°C)
Pressure: 25.9 MPaG max. (Class 1500 LB)
pH: 0 to 14

Features

Low Sliding Friction: Braided packing made with flexible graphite yarn, reinforced with stainless steel wire sheath, and treated with a special lubricant and fine graphite powder.
Enhanced Performance: Reduces sliding friction, making it ideal for valve applications that require gland packing and high-performance sealing.
Stress Relaxation: Offers excellent stress relaxation, improving sealing efficiency and longevity under medium pressure and temperature conditions.
Valve Compatibility: Suitable for use in valves up to Class 1500, providing reliable sealing in demanding valve environments.
