Key Specifications / Features
The China Customized Braided Packing Plant offers high-performance packing solutions for pumps handling slurry fluids. These packings feature a graphite core braided with 100% aramid fiber yarns, providing exceptional strength and durability. The packing is impregnated with PTFE, enhancing its chemical resistance and reducing friction. Designed for applications with operating speeds below 10 m/s, this packing ensures reliable sealing and long service life, making it ideal for demanding industrial pump environments.
- Model No.: MV-20250718-GP-01
- Hits: 6
- Categories: Graphite Packing
- Tags: PTFE Packing, Aramid Fiber Packing, Graphite Packing
Detail Information
Product Name: Customized Braided Packing
Type: Braided Packing
Material: PTFE, Graphite, Aramid Yarn
Dimensions: Customized
Parameters: Speed < 10 m/s, pH 2-14
Fluids: Slurry fluids
Operating Temperature Range: Minimum -220°C (-364°F), Maximum 300°C (572°F)
Usage: Reciprocating, rotary pumps, mixers, stirrers, powder conveyors
Applications: Pulverized products, chemical, agro-chemical, petrochemical, food-processing and sugar industries, cement works, extracting industry

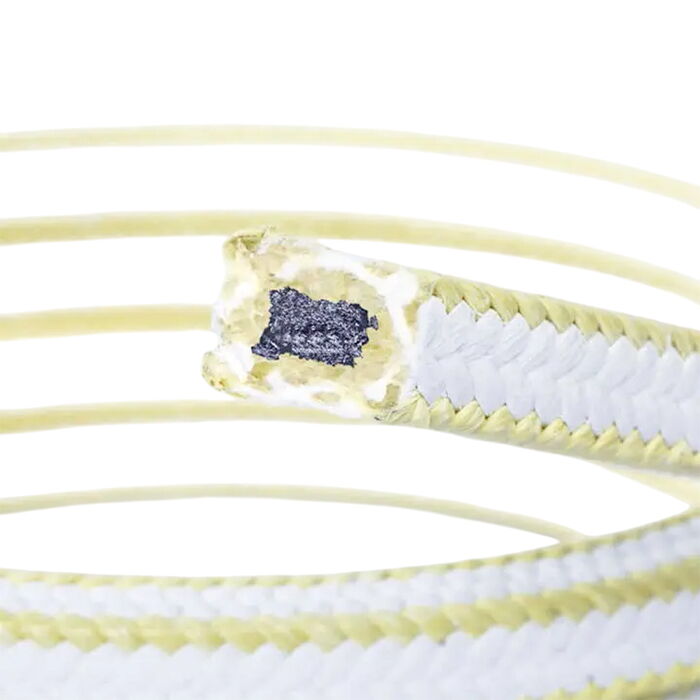

Our compound packing features a graphite core and is constructed from 100% aramid yarns impregnated with PTFE. The friction faces are made of 100% PTFE and lubricated with a silicone-free lubricant. The packing is then re-impregnated with a PTFE mixture during the braiding operation. Available in preformed packing rings upon request. This packing provides sealing solutions for reciprocating machines and rotary applications, especially those using aggressive fluids.
