Graphite Yarn Braided Packing, 6-22 mm, 0-300 bar, Feed Pump
Key Specifications / Features
Our China Graphite Yarn Braided Packing is meticulously crafted from 100% pure graphite continuous yarns, ensuring superior durability and performance. With a size range of 6 to 22 mm and a pressure capacity up to 300 bar, this packing is designed for feed pumps, offering a low friction coefficient that minimizes wear and enhances efficiency. Ideal for applications requiring high reliability and low maintenance.
- Model No.: MV-20250719-GP-01
- Hits: 24
- Categories: Graphite Packing
- Tags: Braided Packing, Graphite Packing, Pump Packing
Detail Information

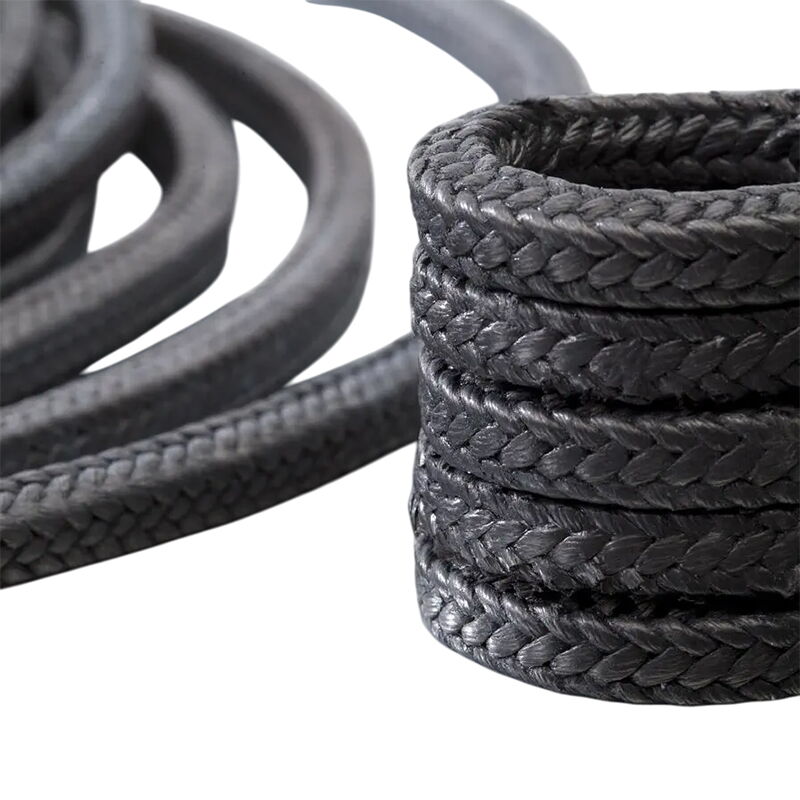

Product Name: Pure Graphite Yarn Braided Packing
Material: Graphite, Carbon
Dimensions: 6-22 mm
Pressure: 0-300 bar
Speed: <35 m/s
pH: 0-14
Usage: Feed Pump
Operating Temperature Range:
Minimum: -200 °C (-328 °F)
Maximum: 600 °C (1,112 °F)
Applications: High-temperature applications, Rotary applications, Power stations
Limitation: Precautions required in oxidizing environments.
The packing is made of 100% pure graphite continuous yarns, impregnated with a graphite mix. Features a very low friction coefficient, good heat dissipation, and outstanding elastic recovery. Dedicated to rotary machine applications, high speeds, and high temperatures for clean fluids.
