Key Specifications / Features
The China Aramid Fiber Packing Factory specializes in producing high-performance braided packing for pump shafts. This packing is made from a compound of rayon staple and aramid fiber yarns, known for their strength and durability. The packing is impregnated with PTFE, which enhances its chemical resistance and reduces friction. It is designed to withstand harsh chemical environments, making it ideal for applications involving corrosive fluids. This product ensures reliable sealing, minimizes leakage, and extends the life of pump shafts.
- Model No.: MV-20250718-PP-01
- Hits: 0
- Categories: PTFE Packing
- Tags: Braided Packing, Aramid Fiber Packing, Shaft Packing
Detail Information

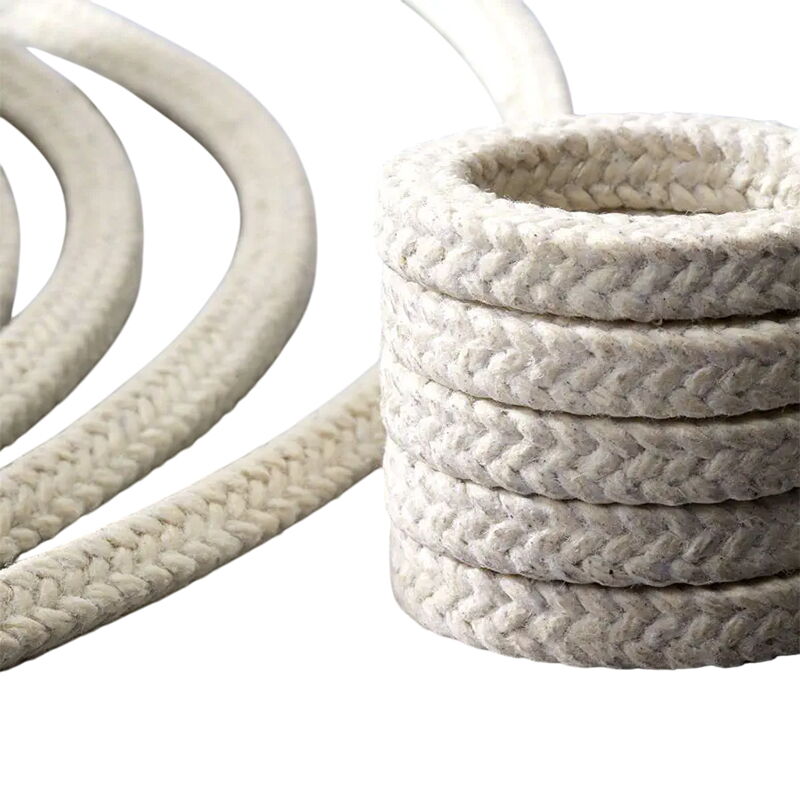

Product Name: Chemical-resistant Aramid Fiber Packing, PTFE Impregnated
Type: Braided Packing
Material: PTFE, Aramid Fiber Yarn, Rayon Staple Fiber
Dimensions: Customized
Parameters: Speed: Less than 20 m/s, pH: 2-12
Usage: Pumps, Rotary movements
Fluids: Slurry Fluids
Operating Temperature Range: Maximum 275°C (527°F), Minimum -200°C (-328°F)
Type of Industries: Chemical, Petrochemical, Pharmaceutical, Food and sugar, Pulp and paper mills, Power stations, Marine (especially propeller shaft glands)
Our cost-effective aramid packing is made from a compound yarn of aramid and staple rayon. Each individual yarn is impregnated with PTFE, and then re-impregnated with a mixture of PTFE and an inert, food-grade lubricant during the braiding operation. Available in preformed packing rings upon request, this aramid packing offers good mechanical performance across all industries.
