Key Specifications / Features

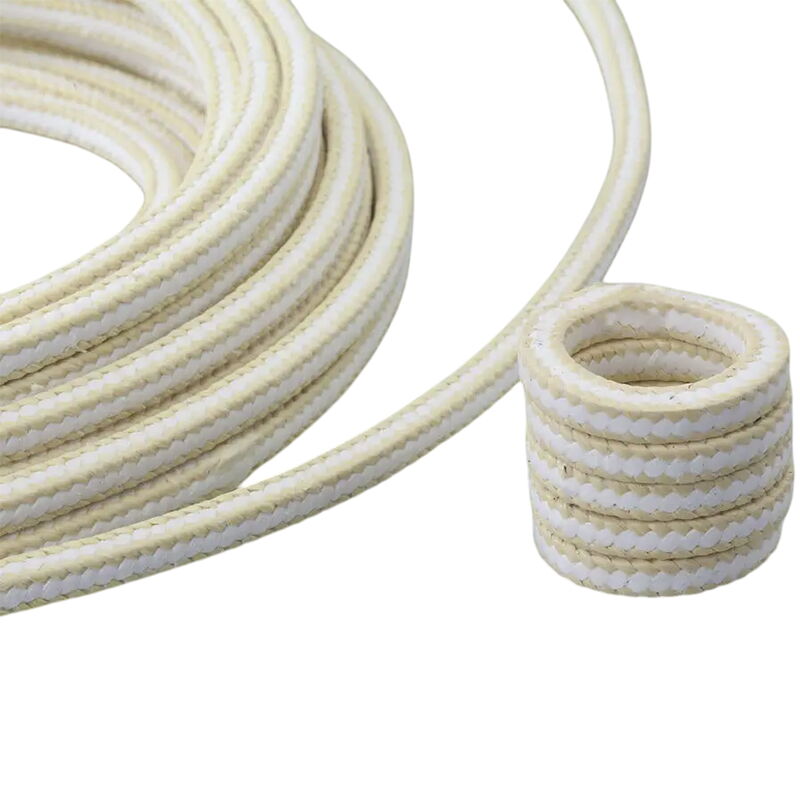

The Multi-yarn Braided Packing Factory produces high-quality packing materials tailored for pumps and mixers. These packings feature a unique construction with aramid and rayon staple yarns braided at the corners, providing robust structural integrity and resistance to wear. The friction face is braided with polyacrylic yarn, ensuring smooth operation and reduced wear on equipment. The packing is impregnated with PTFE, enhancing its chemical resistance and reducing friction. This combination of materials and design makes it ideal for applications in pumps and mixers, offering reliable sealing performance and extended service life.
- Model No.: MV-20250718-PP-05
- Hits: 1
- Categories: PTFE Packing
- Tags: Multi-yarn Packing, Aramid Fiber Packing, Braided Packing
Detail Information
Product Name: Multi-yarn Braided Packing
Type: Braided Packing
Material: PTFE, Aramid/Rayon Staple Fiber Yarn, Polyacrylic Yarns
Dimensions: Customized
Parameters: Speed < 15 m/s, pH 3-11
Fluids: Slurry fluids
Usage: Pumps, Mixers
Operating Temperature Range: Maximum 200°C (392°F), Minimum -50°C (-58°F)
Applications: Cement works, paper mills, sugar industry
A cost-effective packing for general maintenance use. Compound packing made of blended yarns: aramid/staple rayon yarns on the corners and polyacrylic yarns for friction faces. Each single yarn is impregnated with PTFE, then re-impregnated with a mix of paraffin lubricants and gelling agents. Suitable for everyday applications in all industries.
