Key Specifications / Features
Our Composite Phenolic Fiber Packing is a robust synthetic packing braided from high-quality phenolic yarn. It is designed for both rotary and reciprocating applications, offering excellent sealing performance. Available in sizes from 5 to 25.4 mm and capable of withstanding pressures up to 200 bar, this packing provides reliable, long-lasting solutions for a wide range of industrial applications.
- Model No.: MV-20250719-PP-05
- Hits: 1
- Categories: PTFE Packing
- Tags: Braided Packing, Phenolic Fiber Packing, PTFE Impregnated Packing
Detail Information

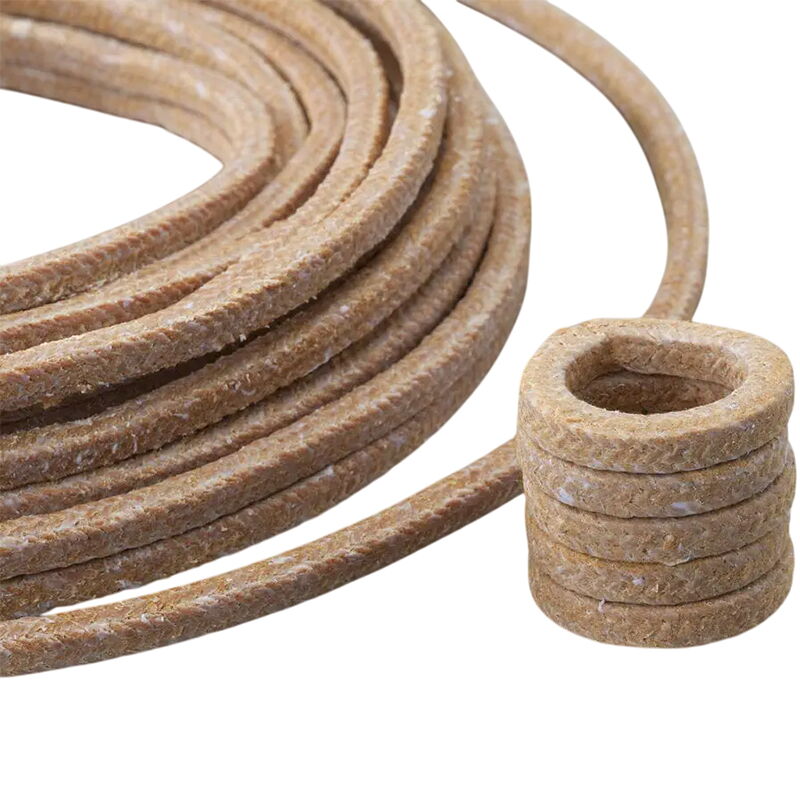

Product Name: Composite Phenolic Fiber Packing, Braided Packing
Material: Composite Phenolic Fiber Yarn, PTFE
Dimensions: 5-25.4 mm
Pressure: 0-200 bar
Speed: <20 m/s
pH: 1-13
Usage: Rotary and reciprocating applications
Operating Temperature Range:
Minimum: -220 °C (-364 °F)
Maximum: 300 °C (572 °F)
Applications: All industries using abrasive fluids and slurries
Features
High-performance synthetic packing for slurries
Reduced running-in time. silicone-free lubricant
Reduced retightening operations
Packing made of composite phenolic yarns, re-impregnated during the braiding operation with PTFE mixed with an inert lubricant. Very good mechanical properties combining softness and strength. Available in preformed packing rings upon request. High-performance synthetic packing suitable for slurries.
