Key Specifications / Features

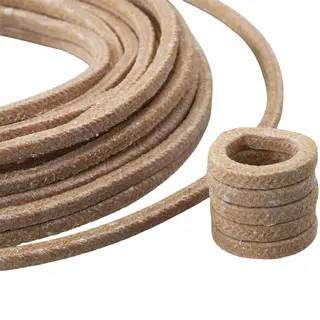

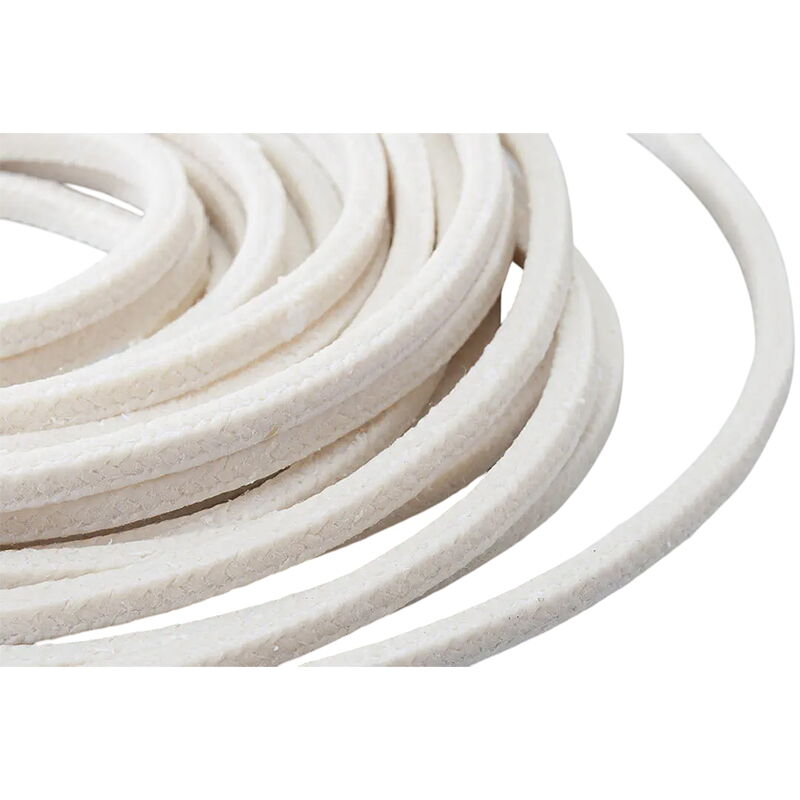

The China Anti-rot Braided Packing Plant offers high-quality vegetable-fiber packing, specifically made from durable ramie fibers impregnated with PTFE. This packing is designed for rotary and reciprocating pumps, providing excellent resistance to wear and corrosion. Available in sizes ranging from 4 to 22 mm and capable of withstanding pressures up to 400 bar, it ensures reliable performance and long-lasting durability in demanding industrial applications.
- Model No.: MV-20250721-PP-01
- Hits: 4
- Categories: PTFE Packing
- Tags: Anti-rot Packing, PTFE Impregnated Packing, Ramie Fiber Packing
Detail Information
Product Name: Anti-rot Braided Packing
Material: PTFE, Ramie Fiber
Dimensions: 4-22 mm
Pressure: 0 to 400 bar
Speed: < 15 m/s
pH: 4-11
Operating Temperature Range:
Minimum: -40 °C (-40 °F)
Maximum: 120 °C (248 °F)
Usage: Rotary and Reciprocating Pumps, Hydraulic Presses, Ship Propeller Shaft Seals
Applications: Chemical, Paper, Food Industry
Medium: All industries using clean fluids or slurries, salt water, emulsified water, oils, hydrocarbons, solvents, paper pulp
Anti-rot packings designed for rotary machine applications. Packing made of high-quality ramie yarns, impregnated with a mix of PTFE and inert lubricant during the braiding operation. Suitable for a wide range of fluids and industrial applications.
