Key Specifications / Features
The Metal-Reinforced Graphite Ring Supplier offers durable sealing solutions made from flexible graphite, reinforced with steel strips and metal wire mesh for enhanced strength and reliability. These rings are designed to provide low-emission performance in demanding environments, ensuring effective sealing under high temperatures and pressures. Ideal for use in industrial applications like pumps, valves, and compressors, they offer long-lasting, secure sealing in critical systems.
- Model no.: MV-20250414-GP-03
- Hits: 9
- Categories: Graphite Packing
- Tags: Flexible Graphite Ring, Packing Ring
Detail Information
We provide durable sealing solutions made from flexible graphite, reinforced with metal wire mesh weaving to enhance strength and reliability. These sealing rings are designed to deliver low-emission performance in harsh environments, ensuring effective sealing under high temperature and high pressure. They are particularly suitable for high-temperature and high-pressure steam applications in power plants. They are also ideal for industrial applications such as pumps, valves, and compressors, providing long-lasting and secure sealing in critical systems.

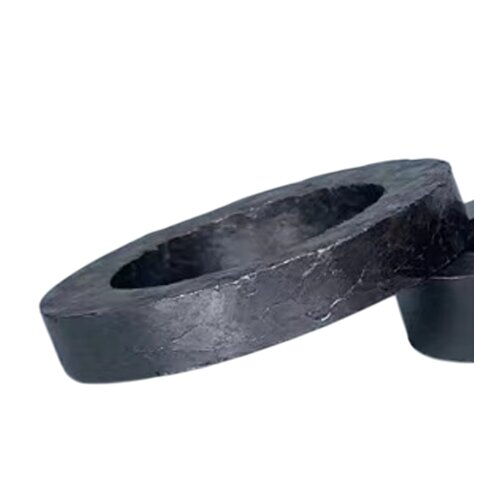

Product Name: Metal-Enhanced Graphite Rings (Packing Rings)
Material: Flexible Graphite, ≥99.5% Carbon Content, Anti-Oxidation Graphite
Size: Customized
Structure and Manufacturing: Made from flexible graphite fiber material, reinforced with metal wire mesh weaving, and manufactured through molding processes.
Applications: Suitable for gate valves, globe valves, ball valves, control valves, etc. They are particularly effective in demanding environments, including:
- Hot water and high-temperature, high-pressure steam
- Heat transfer fluids
- Nitrogen, organic solvents
- Hydrocarbons
- Cryogenic liquids
Technical Specifications
|
Specification |
Value/Range |
|
Density |
2.2 ± 0.05 g/cm³ |
|
Compression Rate |
35% to 55% |
|
Rebound Rate |
≥15% |
|
Stress Relaxation Rate |
≤10% |
|
Ash Content |
≤1% |
|
Fluorine Content |
Customizable, 0 ppm to 50 ppm |
|
Carbon Content |
≥99.5% |
|
Sulfur Content |
≤50 ppm |
|
Chlorine Content |
≤30 ppm |
