Pure Flexible Graphite Ring, 99.5% Carbon Content, Customized
Key Specifications / Features
The Pure Flexible Graphite Ring Plant produces low-emission packing rings with a high carbon content of up to 99.5%, ensuring excellent thermal stability and chemical resistance. Designed for sealing mechanical rotating parts, these flexible graphite rings offer superior performance in high-temperature and high-pressure environments, making them ideal for use in pumps, valves, and other critical industrial equipment.
- Model No.: MV-20250414-GP-01
- Hits: 24
- Categories: Graphite Packing
- Tags: Flexible Graphite Ring, Packing Ring
Detail Information

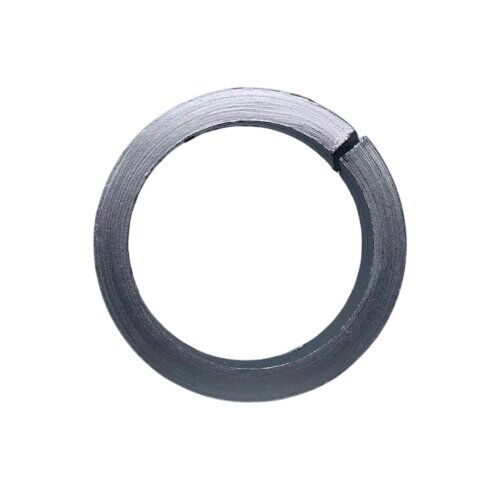

Product Name: Beveled Pure Flexible Graphite Rings
Material: Flexible Graphite
Carbon Content: ≥99.5% Carbon Content, Anti-Oxidation Graphite up to 600°C ≤1%
Size: Customized
Applications: Maintenance use in petrochemical and thermal power plants

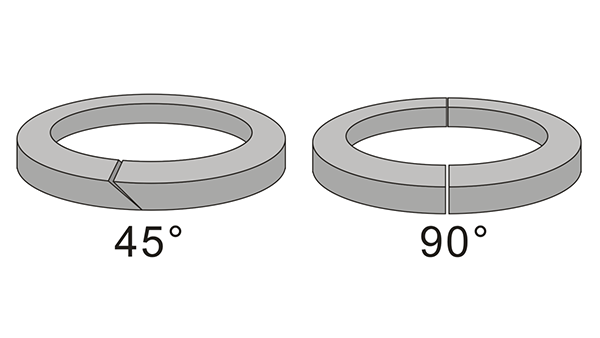

Structure and Manufacturing: Available in two types: 45-degree beveled pure flexible graphite and 90-degree cut.
Main Specifications/Features
Beveled pure flexible graphite rings and 90-degree cut rings.
The factory produces low-emission packing rings with a carbon content as high as ≥99.5%, ensuring excellent thermal stability and chemical resistance. These flexible graphite rings are specifically designed for sealing rotating mechanical components and offer superior performance in high-temperature and high-pressure environments, making them an ideal choice for pumps, valves, and other critical industrial equipment.
Technical Specifications
Specification | Value/Range |
Density | 1.5 ± 0.05 g/cm³ |
Tensile Strength | ≥4.5 MPa |
Compression Rate | 35% to 55% |
Rebound Rate | ≥15% |
Stress Relaxation Rate | ≤10% |
Ash Content | ≤1% |
Fluorine Content | 0 ppm to 50 ppm |
Carbon Content | ≥95% to ≥99% to ≥99.5% |
Sulfur Content | ≤1000 ppm to ≤50 ppm |
Chlorine Content | ≤50 ppm to ≤30 ppm |
