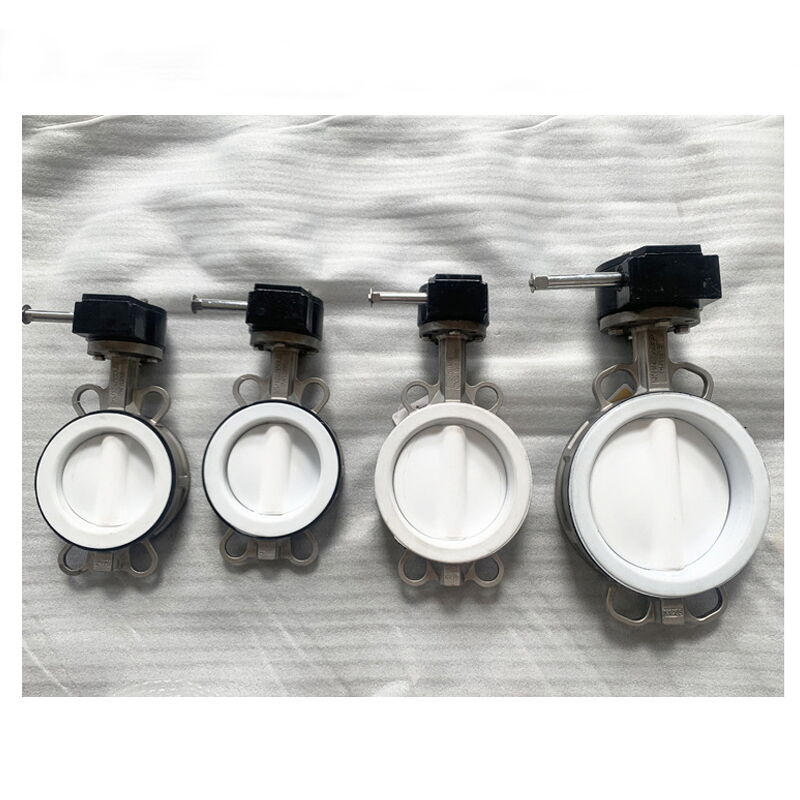

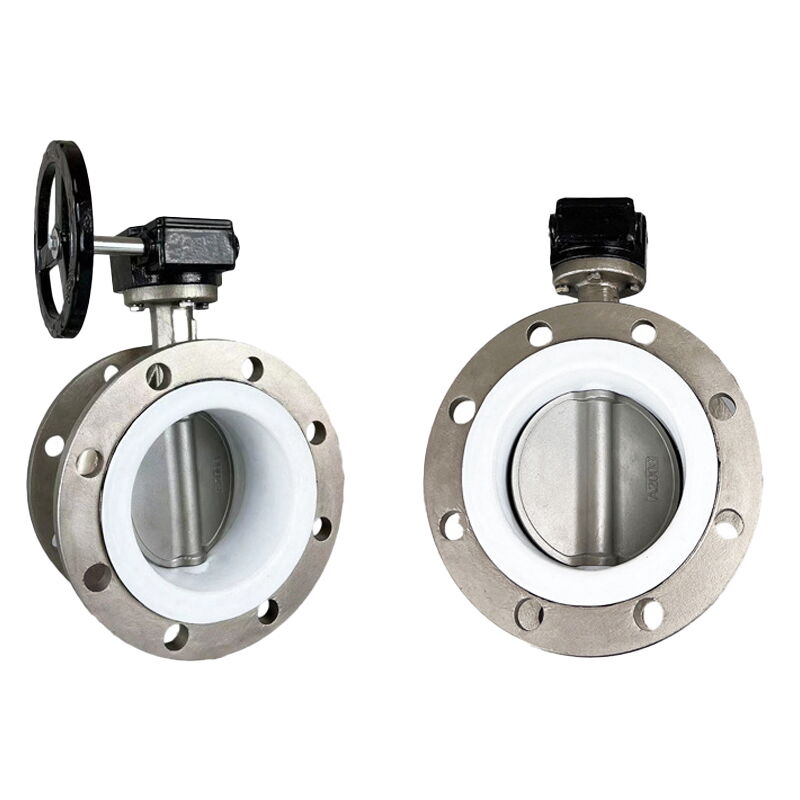

PTFE Seated Butterfly Valve, SS 304, 2-60 Inches, PN10, PN16

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The China PTFE Seated Butterfly Valve Factory produces high-performance butterfly valves with stainless steel SS 304 bodies, available in sizes ranging from 2 to 60 inches (DN50 to DN1500). These valves are designed to meet various pressure ratings, including PN10, PN16, and Class 150 LB, and feature flanged ends for secure and reliable connections. The PTFE seating ensures excellent chemical resistance and durability, making these valves suitable for a wide range of industrial applications.

Model No.: MV-20250715-BFV-02
Hits: 3
Categories: Cryogenic Butterfly Valve
Tags: PTFE Seated Butterfly Valve, Stainless Steel Butterfly Valve, SS 304 Butterfly Valve

Request a quote

Detail Information

Product Name: PTFE Seated Butterfly Valve
Body Material: Stainless Steel SS 304
Seat Material: PTFE
Size Range: 2-60 Inches, DN50-DN1500
Pressure: 1.0/1.6 MPA, PN10, PN16, Class 150 LB
End Connection: Flanged
Temperature Range: 0°C to 150°C
Suitable Medium: Fresh water, Wastewater, Seawater, Air, Steam, Food, Pharmaceuticals, Various oils, Acids, Alkalis, Salts, etc.

Product Range

Valve Material: Ductile iron / Cast steel / SS 304/SS 316/SS 316L/Copper Body C9554, etc.
Disc Material: Graphite / 304/316/2507/1.4529/1.4469 Rubber / PTFE / PFA, etc.
Seat Material: EPDM / Viton / Neoprene / Teflon / Silicone / HNBR / Silicone, etc.
Stem Material: Galvanized Steel, 45# Steel, Stainless Steel 416/304/316, etc.
Manual Device: Hydraulic handle, Manual handle, Stainless steel handle, Worm gear, Underground head, Signal head, Electric actuator, Pneumatic actuator, etc.
Valve Type: Soft Seal Butterfly Valve, Flanged Butterfly Valve, Desulfurization Butterfly Valve, Fire Butterfly Valve, Marine Butterfly Valve, Grooved Butterfly Valve, etc.
Size Range: DN25-DN2400, 1-96 Inches
Medium: Water, Cold water, Hot water, Sewage, Chemical liquid, Seawater, Gas, Dust, Oil, etc.
Working Pressure: 0.6 Mpa, 1.0 Mpa, 1.6 Mpa, 2.5 Mpa, etc.
Working Temperature: -20°C to 150°C, etc.

Product Features

1. National Standard Heavy Duty Valve Body
Enhanced Durability: The valve body is designed to withstand higher pressures due to its thicker construction.
Precision Engineering: Utilizes precision casting technology for a robust and reliable valve body.
Aesthetic Appeal: Features a visually pleasing appearance with a coat of paint.
2. Exceptional Corrosion Resistance
Premium Materials: Equipped with imported German EPDM rubber for superior corrosion resistance.
Versatile Application: Suitable for a wide range of applications due to its resistance to corrosion.
Non-stick Surface: The material is designed to prevent sticking, ensuring smooth operation.
3. Pressure Resistant and Durable
Rigorous Testing: Each product is subjected to multiple rounds of pressure testing and inspection.
Quality Assurance: These tests ensure the product's quality and reliability under various conditions.
4. Innovative Worm Gear Design
Oxidation Resistance: The surface is treated to resist oxidation, enhancing the gear's longevity.
Smooth Operation: The gear is smooth and free of burrs, contributing to easier operation.
Effort Reduction: The design is more labor-saving, making the product more efficient to use.
