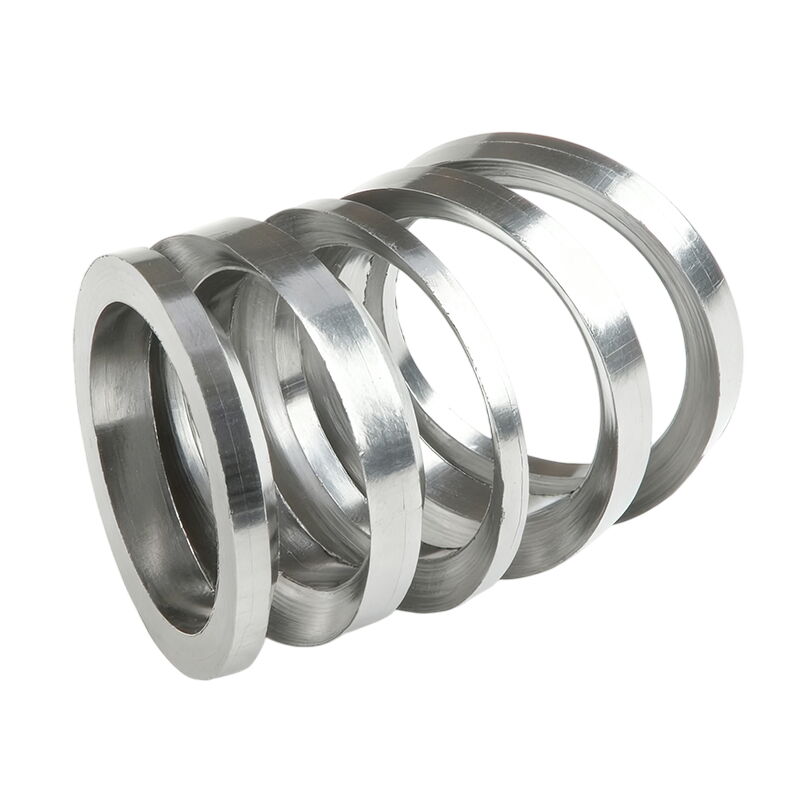

Quarter-turn Valve Stem Packing, Flexible Graphite, 5 Rings

Key Specifications / Features

The Quarter-turn Valve Stem Packing Factory specializes in producing rotary valve stem packing solutions. These include molded flexible graphite angular rings designed for reduced gland height, ensuring reliable sealing. The packing is engineered to provide exceptional performance in quarter-turn valve applications, offering durability and low maintenance requirements.

Model No.: MV-20251027-GP-02
Hits: 25
Categories: Graphite Packing
Tags: Flexible Graphite Valve Packing, Valve Stem Packing, Quarter-turn Valve Packing

Request a quote

Detail Information

Product Name: Quarter-turn Valve Stem Packing
Description: The Rotary Valve Stem Packing is a precision-engineered, angular 5-ring packing set designed specifically for quarter-turn valves that require reduced gland height.
Construction & Design:
Five-Ring Configuration: The packing combines three high-density molded flexible graphite rings (two outer, one center) with two density-controlled molded sealing rings.
Density Control: High-density end and center rings maintain consistent installed density over extended periods, reducing the need for frequent gland adjustments.
Angular Ring Design: Simplifies installation, saving time and lowering maintenance costs.
Benefits:
Long-lasting sealing performance
Reduced maintenance and adjustment frequency
Easy and efficient installation
Improved valve operation smoothness
Applications: Ideal for rotary valves in industrial applications where compact packing height, reliable sealing, and minimal maintenance are critical.
