Key Specifications / Features
Our China Oxygen Valve Stem Packing Factory specializes in producing high-purity graphite packing for oxygen service, designed to meet the stringent requirements of API 622. These packing solutions are engineered to provide low fugitive emissions, ensuring safety and environmental compliance. They are available in custom dimensions and suitable for a wide range of pressure classes from 150 to 2500 LB.
- Model No.: MV-20250729-GP-01
- Hits: 18
- Categories: Graphite Packing
- Tags: Oxygen Valve Packing, Graphite Valve Packing, Valve Stem Packing
Detail Information

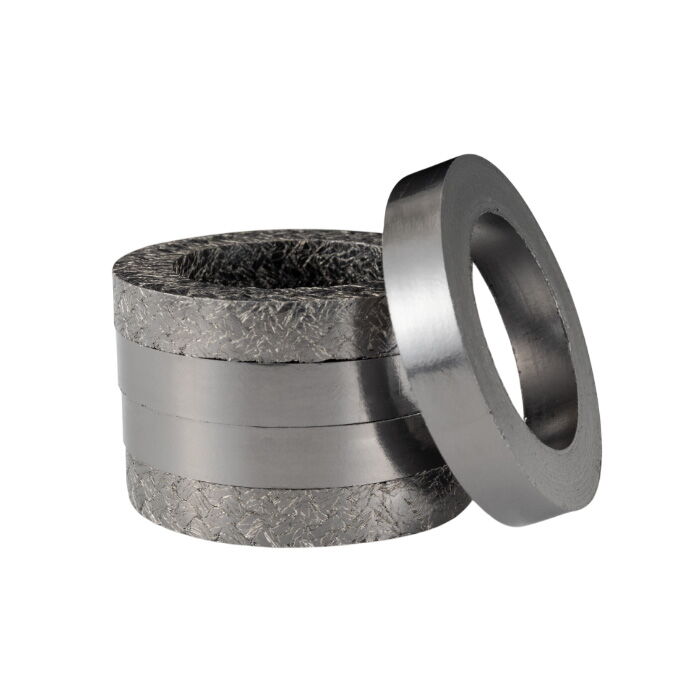

Product Name: Valve Stem Packing Set for Oxygen Service
Material: High-purity Graphite
Fugitive Emission Standard: API 622
Dimensions: Customized
Applicable Pressure: Class 150-2500 LB
Temperature Range: -183°C to 450°C (-297°F to 842°F).
Application: Suitable for oxygen service valves, including gate valves, globe valves, ball valves, butterfly valves, check valves, and control valves.
Product Features
Made from high-purity graphite to minimize the content of combustible materials.
Entire process and materials are treated to be free of grease.
Leakage rate complies with API 622 emission requirements.
End rings and sealing rings have passed BAM oxygen service tests.
Produced in a dust-free and clean environment.
Oxygen service valves are required to meet high safety standards due to the highly combustible nature of oxygen, which can lead to severe accidents such as valve burning or explosion during the valve's operation. The valve stem sealing packing, being a critical component of the valve's operation, is particularly important for its sealing and reliability. The packing set is a specialized sealing packing designed and manufactured for use in oxygen service valves.
