Key Specifications / Features

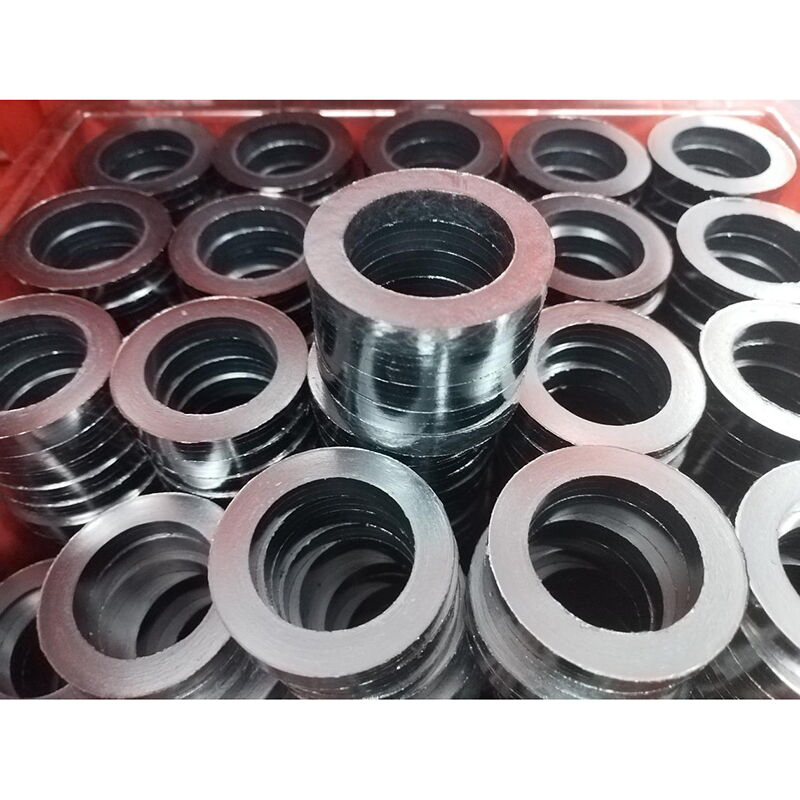

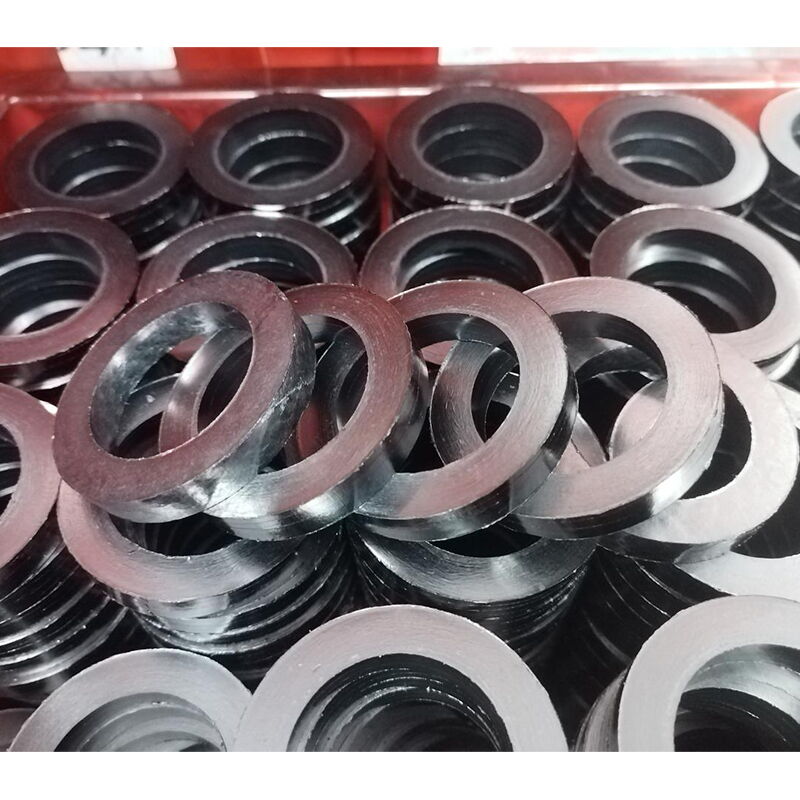

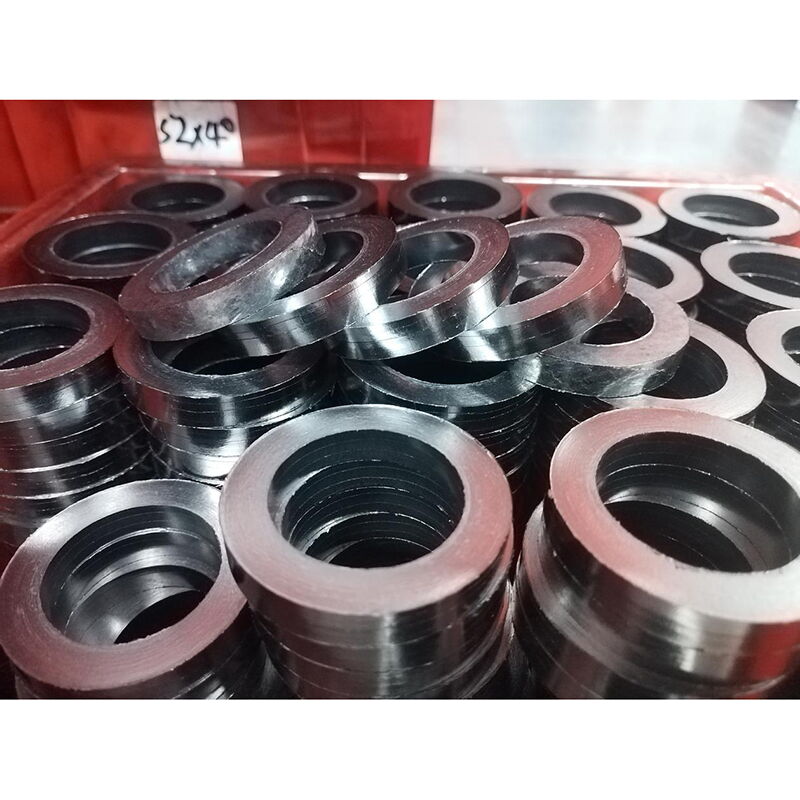

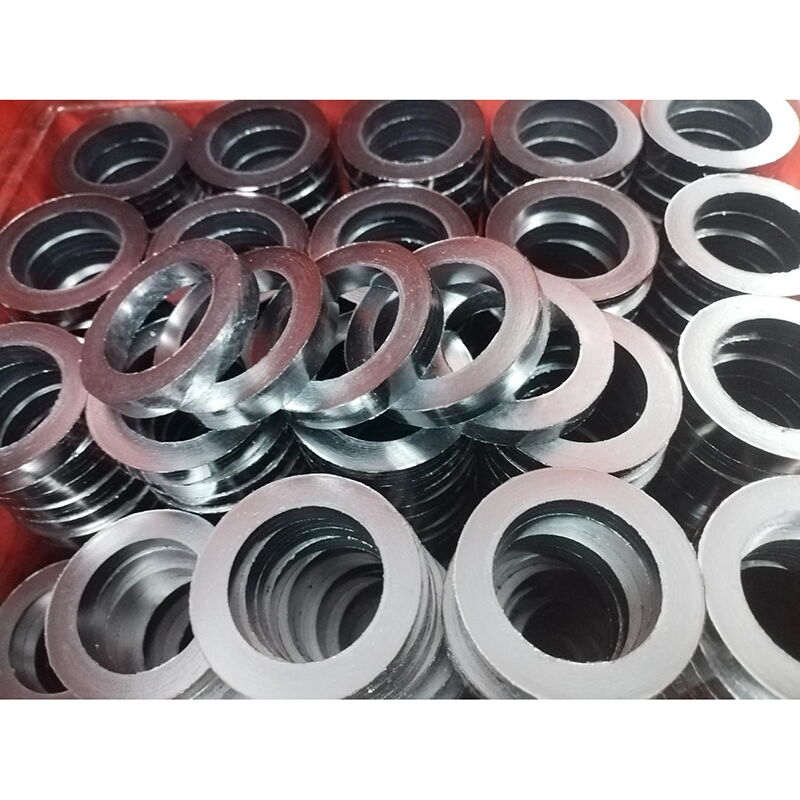

The Low-E Gate Valve Packing Set Factory produces high-performance packing sets tailored for Class 600 LB API 6D Gate Valves. Each set features an inner diameter of 46mm and an outer diameter of 66mm, comprising five graphite rings. The packing meets stringent environmental standards, including ISO 15848-1, TA-Luft, and API 622, ensuring minimal emissions and reliable sealing. This product is essential for maintaining the integrity and efficiency of gate valves in critical industrial applications.
- Model No.: MV-20250630-GP-02
- Hits: 7
- Categories: Graphite Packing
- Tags: Graphite Valve Packing, Gate Valve Packing, API 622 Valve Packing
Detail Information
Product Name: Low Emission Packing Set for Class 600 LB API 6D Gate Valve
Structure: packing set with upper and lower rings
Model: M600
Size: ID 46mm * OD 66mm * 5 Rings
Certifications: ISO 15848-1, TA-Luft, API 622 (including high-temperature certification up to 400°C)
Material Properties:
Graphite Purity: ≥99%
Metal Wire Content: 20% (Material: Inconel 600)
Sulfur Content: ≤50PPM
Chlorine Content: ≤20PPM
Application Conditions: -45°C to +425°C
Operating Parameters
Speed: 2 m/s
Temperature Range: -200°C to +400°C (for most media), -200°C to +550°C (for steam)
pH Value: 0 to 14
Pressure: 25 MPa
Media: Suitable for most chemical substances (solvents, hydrocarbons, acids, alkalis, steam, alcohol, oil)
Except for strong oxidizing acids, such as sulfuric acid and nitric acid.
The packing of this valve adopts a composite structure of upper and lower gland rings, which is characterized by excellent stability. There will be no leakage fluctuations even under alternating hot and cold conditions. The usage cost is less than one-fourth of that of European and American brands. Therefore, if you specify the use of our low-leakage packing, it will significantly reduce costs while ensuring reliable sealing performance. We also provide professional technical guidance for the installation of the packing and the overall machining process.
