Key Specifications / Features

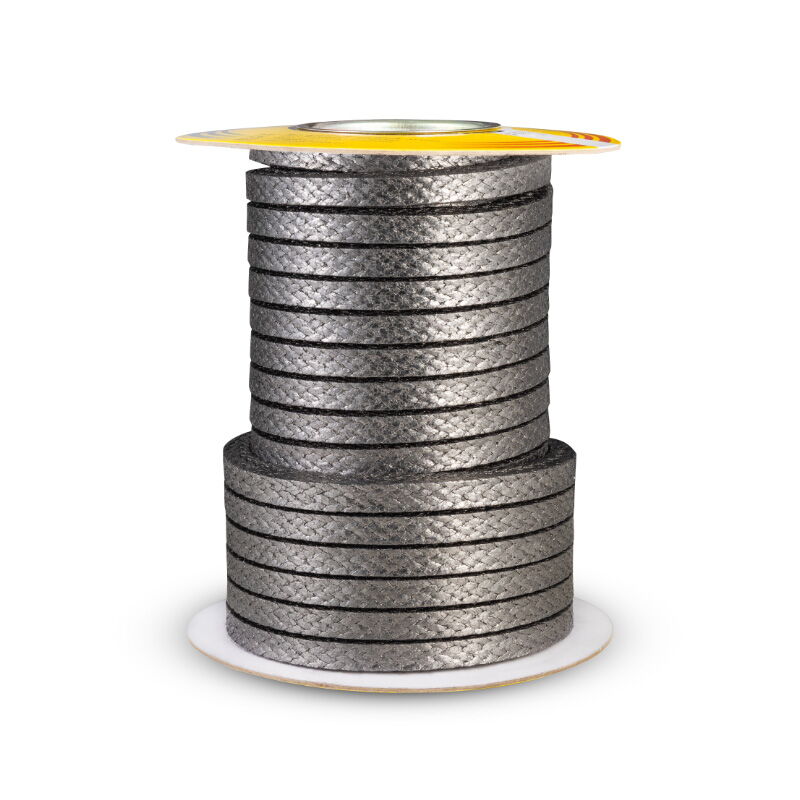

The Alloy Wire Reinforced Packing Plant produces high-temperature and high-pressure valve packing, utilizing flexible graphite in a square interlock braided structure. This advanced packing material is capable of withstanding pressures up to 450 bar, making it ideal for demanding industrial applications. The combination of alloy wire reinforcement and flexible graphite ensures durability, flexibility, and excellent thermal resistance, providing a reliable sealing solution for valves in critical environments.
- Model No.: MV-20250801-GP-01
- Hits: 23
- Categories: Graphite Packing
- Tags: Flexible Graphite Valve Packing, 450 bar Valve Packing, Alloy Wire Reinforced Valve Packing
Detail Information
Product Name: High-Temperature High-Pressure Valve Packing
Material: Flexible Graphite, High-temperature Alloy Wires
Structure: Square Interlock Braided
Pressure: 450 bar
Construction: Flexible Graphite as the structural thread, reinforced with 5 high-temperature alloy wires inside each thread, and externally braided with high-temperature alloy wires.
pH Value: 0 to 14 (except for strong oxidizing agents).
Temperature Range: -250°C to +850°C (non-oxidizing atmosphere), -250°C to +550°C (oxidizing atmosphere).
Applicable Medium: Acids, crude oil, synthetic oils, solvents, steam, water.
High-Temperature High-Pressure Valve Packing Features
A revolutionary product designed specifically for high-temperature and high-pressure valves.
Incorporates special lubricants for excellent self-lubricating properties and extended lifespan.
Dimensionally stable to prevent gas and fluid leakage, compliant with stringent VOC and VHAP emission regulations.
Scratch-free, self-lubricating, and does not harden.
Unique outer braided high-temperature alloy wire structure enhances abrasion resistance and anti-extrusion properties under high pressure.
No need for end rings.
Good thermal conductivity, heat and pressure resistant.
Application Industries
Petroleum and Chemical
Pulp and Paper
Metallurgy
Power Generation
