2-piece Ball Valve, API 6D, ASTM A216 WCB, 16 IN, CL150, RF
(API 624 Additional High Temperature Version)
Key Specifications / Features

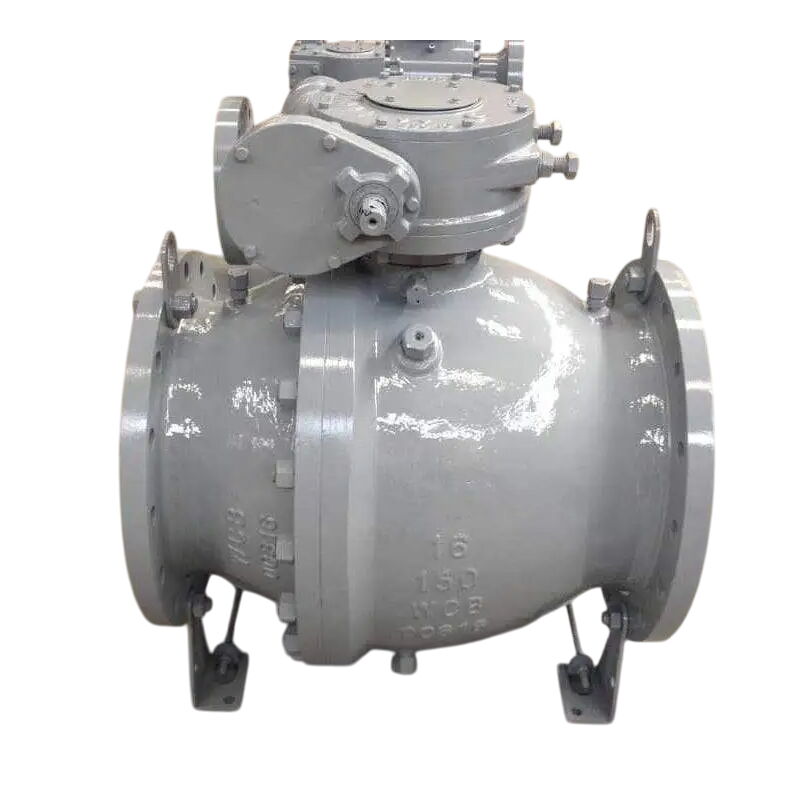

The 2-piece Ball Valve Plant from China is a high-quality industrial valve designed for reliability and efficiency. It adheres to the stringent API 6D standard, ensuring low leakage and robust performance. The valve features a carbon steel ASTM A216 WCB body, making it durable and suitable for a wide range of applications. With a size of 16 inches and a DN400 rating, it offers Class 150 LB and PN20 pressure capabilities. The valve is equipped with a gearbox for smooth and precise operation, and it has RF (Raised Face) ends for secure connections.
- Model No.: MV-20250611-LTMSBV-05
- Hits: 17
- Categories: Low Torque Metal Seated Ball Valve
- Tags: ASTM A216 WCB Ball Valve, 2 Piece Ball Valve, 16 Inch Ball Valve
Detail Information
Product Name: 2-piece Ball Valve
Design Standard: API 6D
Body Material: ASTM A216 WCB
Size: 16 Inch, DN400
Pressure: Class 150 LB, PN20
Operation: Gearbox
End Connection: RF Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A216 WCB, A217 WC6, A351 CF8, CF8M, CF3, CF3M, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
