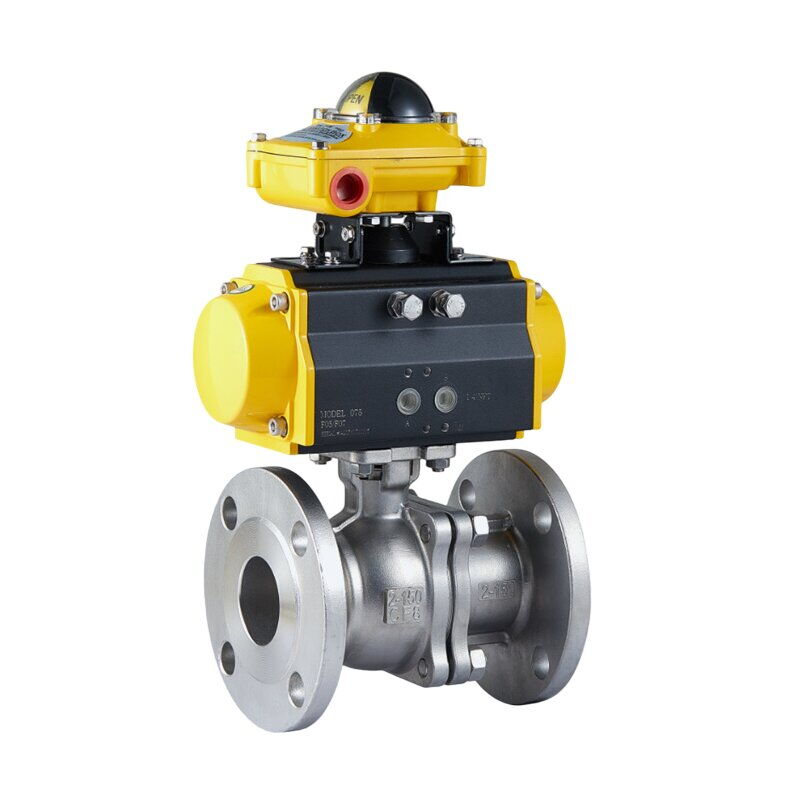

ASTM A351 CF8 Ball Valve, ASME B16.34, 2 IN, CL150, Pneumatic

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

This ASTM A351 CF8 ball valve features a durable two-piece cast stainless steel body, built to ASME B16.34 standards. With a 2-inch (DN50) full port design, it ensures unrestricted flow and reliable performance. Rated for Class 150 LB pressure, the valve is pneumatically actuated for smooth, automated operation. Engineered for low leakage, it's an ideal choice for fluid systems that demand efficiency, durability, and control.

Model No.: MV-20250407-LTMSBV-05
Hits: 20
Categories: Low Torque Metal Seated Ball Valve
Tags: Pneumatic Actuated Ball Valve, ASME B16.34 Ball Valve, ASTM A351 CF8 Ball Valve

Request a quote

Detail Information

Product Name: ASTM A351 CF8 Ball Valve, 2 Piece, Pneumatic
Design Standard: ASME B16.34
Body Material: ASTM A351 CF8
Size: 2 Inch, DN50
Pressure: Class 150 LB, PN16
End: Flanged
Operation: Pneumatic Actuator

Key Features

Investment Casting
Locking Device Handle
Anti-static Device
Blow-out Proof Atem
ISO 5211 Direct Mounting Pad
Full Port

Product Range

Nominal Diameter: DN15-DN150, 1/2-6 Inch
Working Pressure: PN16/PN40, Class 150 LB
Working Temperature: -20°C to 180°C
Body Material: ASTM A216 WCB, A351 CF8, CF8M
Actuator Options: Pneumatic, Electric
Connection Type: Flanged End
Applications: Suitable for petroleum, chemical, natural gas, biochemical, pharmaceutical, environmental protection, and new energy industries

Standards

Design: ASME B16.34
Flange Dimensions: ASME B16.5
Face-to-Face: ASME B16.10
Inspection & Testing: API 598
